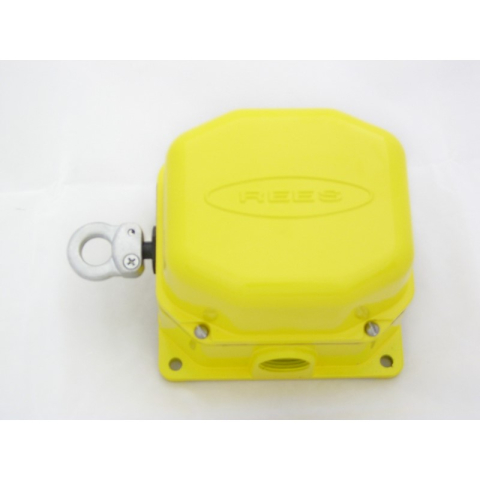

Rees 04944-840 Cable Operated Switch, Trip Force 28 lb

Features:

The following "slack cable" style switch has 2 NO and 2 NC contacts. This switch is particularly competent for ordinary circuit control but is not recommended for Emergency Stop applications.

The housing is made from high quality die-cast aluminum and powder coated painted yellow.

• Automatic Reset Type
• Gold plated contacts eliminate high resistance tarnishing
• Nema 12/13, IP 65
• May be mounted for right or left hand pull
• 25 lb trip force

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with a santoprene gasket, which provides an oil tight seal upon installation and protects against corrosive environments.

There are two 3/4" NPT conduit openings. The maximum cable recommended cable length is 200 feet with a maximum interval support of 10 feet.

The mechanical life of the switch is 150,000 operations.

This switch can be installed on various conveyor installations, particularly those requiring constant starting and stopping operations.

The rugged construction and long term reliability makes this cable pull switch well suited to function within various environments.

This switch is not UL Listed or CSA Certified

Electrical Ratings:

• "HEAVY DUTY - A600 / N300"
• CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

• Operating: +32°F to +131°F (0°C to +55°C)
• Storage: -40°F to +185°F (-40°C to +85°C)
• Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
