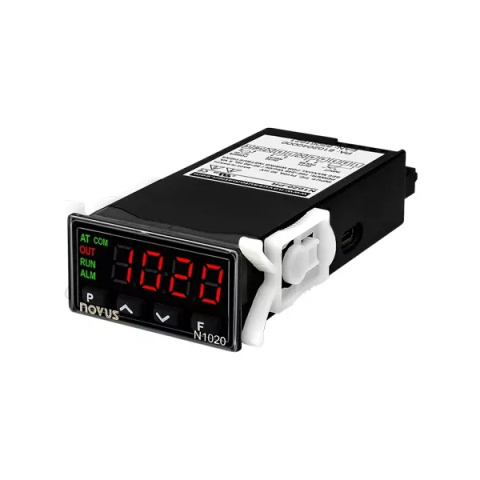

NOVUS 8102044000 N1020-PR 24V USB Temperature Controller, 1 Relay Out, 48x24mm (1/32 DIN)

N1020 is an extremely versatile process controller. In a single model, it accepts most sensors and signals used in industry and provides the main types of output needed to act on several processes. Configuration can be carried out directly on the controller or, once the QuickTune software has been installed on the computer to be used, via the USB interface. When the device is connected to USB, it will be recognized as a serial communication port (COM) operating with the Modbus RTU protocol. Through the USB interface, even when disconnected from the power supply, the configuration performed on one device can be saved in a file and repeated on other devices that require the same configuration.

Features:

• High-brightness red LED display.
• Universal input for thermocouples, Pt100 and 50 mV.
• Auto-tuning of PID parameters.
• 2 outputs: 1 pulse and 1 relay.
• Configurable outputs with 3 functions: Control, Alarm 1 and Alarm 2.
• Configurable alarms with 8 functions.
• Programmable Timer.
• Soft Start function.
• Ramp function.
• Password protection for configuration.
• Function to restore factory calibration.
