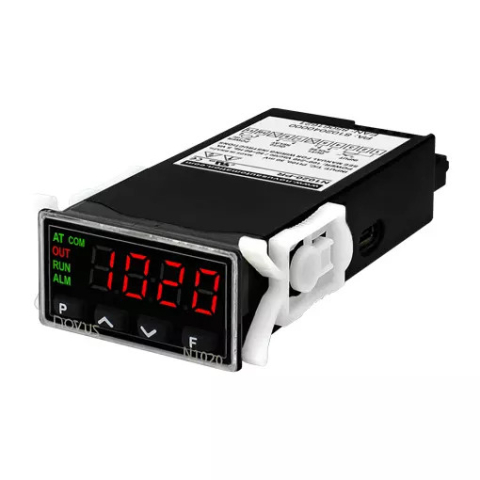

NOVUS 8102040000 N1020-PR (2024) USB Temperature Controller, 1 Relay Out, 48x24mm (1/32 DIN)

The N1020 temperature controller has a high performance microprocessor, which can control complex and critical processes through the self-adaptive PID control algorithm that adjusts the PID parameters and obtains the best possible response for a PID controller.

The front panel of this process controller has dimensions of 48 x 24 mm and is suitable for applications with limited mounting space. It accepts multiple thermocouple types, Pt100 and 0-50 mV. It is possible to configure the temperature controller using the front keyboard or the USB interface (in this case, with QuickTune, a free configuration software from NOVUS). When using the USB interface to configure the device, the N1020 temperature controller does not need to be powered from the rear terminals.

Features:

• Power supply: 100 to 240 Vac/dc
• Universal input: thermocouples, Pt100 RTD and 50 mV
• Dual output: 1 pulse and 1 relay
• Output funtions: control, alarm 1, alarm 2
• Ramps an soaks: 5 programs with 4 segments
• Front pannel: IP65, polycarbonate UL94 V-2
• Enclosure: IP20, polycarbonate UL94 V-2
• Auto-adaptive PID control
• PID parameters auto-tuning
• Configurable alarms with 8 different functions
• Alarm inhibit function at start up
• Programmable timer
• "F" key with 3 possible functions
• Soft-start function
• Ramps function
• High brightness red LED display
• Measured value offset
• Minimum and maximum limits for SP setting
• Minimum and maximum limits for output value
• Access password for configuration protection
• Factory calibration settings restoration feature
• Silicone keypad
• Detachable Connector
• USB interface 2.0, CDC class (virtual communications port), USB conector: type C, Modbus RTU protocol
• CE and UL certifications
