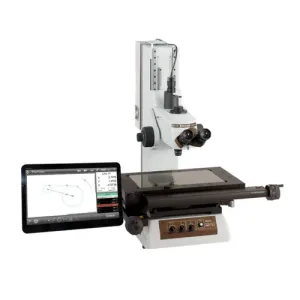

Mitutoyo 176-863-10PK2 MF-A2017D Measuring Microscope, 2-Axis Counter, Manual Machine Type, 200 x 170 mm Travel Range, LED, Binocular Tube, M2 System

The MF 176 series are user-friendly microscopes that offer high magnification capability, wide field of view, and high accuracy-measurement.

The MF measuring microscopes can be combined with Mitutoyo's vision unit to boost its performance and data management on a PC, further improving measuring efficiency and productivity.

Features:

• Observation with a crisp and high-resolution erect image and a wide field of view
• Measuring accuracy that is highest in its class (and conforms to JIS B 7153)
• ML series, high-NA objectives that are specially designed for the MF series (long working distance type)
• Illumination unit (reflected/transmitted) selectable from a high-intensity LED or halogen bulb (selection required)
• Variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction
• Variety of standardized stages in sizes up to 400x200mm
• Quick-release mechanism useful for moving the stage quickly when measuring workpieces that are large in size or quantity
• Coarse/fine feed handles equipped as standard on both sides allow precise focus and observation measurement regardless of handedness
• High-magnification eyepiece observation up to 2000x
• Standard measuring microscope has a wide variety of optional accessories including a vision unit and various digital CCD cameras

MF / MF-U Measuring Microscopes with Metlogix M2 Software and Touch-Screen Tablet

• Highest measuring accuracy in its class
• Stage travel range up to 400mm x 200mm / 16in x 8in
• Quick release mechanism and zero-set buttons on stage controls increase operability when working larger workpieces
• Easy to use all-in-one PC Touch Screen Display
• M2 Geometric 2D Measurement Software
• Camera port is standard on all models
• Wide range of objectives available from 1x to 100x

For more information, please see Brochure and Bulletin
