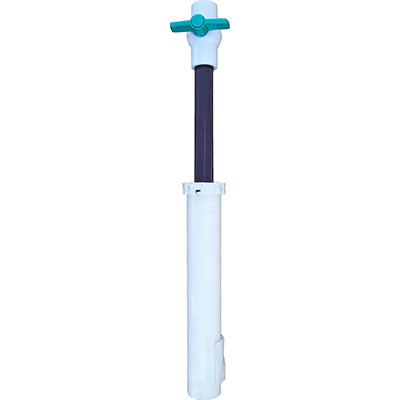

Merrill HIDET27505 Hide-Drant Removable and Sanitary Hydrant - PVC Stand Pipe / Straight - Irrigation / 5' Bury - 70" Overall

The Merrill Hide-Drant is a sanitary yard hydrant that has been approved as such in even the most restrictive states like; Illinois, Indiana, Michigan, Ohio, and Wisconsin. Available in stainless or PVC and with a curved or straight neck, Merrill provides a sanitary hydrant option for you. The Hide-Drant's standpipe can be removed with three counter-clockwise turns, then drain the standpipe of water and your Hide-Drant is frost-proof for freezing temps. The stop valve at the bottom of the Hide-Drant is automatically opened when the standpipe is reinstalled. The seals between the stop valve and the standpipe are water-tight before the valve is reopened. The Hide-Drant's outlet can be set to any direction by simply tightening the standpipe the three turns from where you want the outlet to be.

Specifications

Features & Benefits

Sanitary Yard Hydrant - Reasonably prices and no required flow time to flush out hydrant

Frost Proof - Turn counter-clockwise three turns to disconnect and remove standpipe, then drain standpipe for freezing temperatures

Stop Valve at Bottom of Hide-Drant - Automatically opened when standpipe is reinstalled.  Seals between the stop valve and standpipe hold water before the valve is reopened.  Stop valve available in PVC or stainless steel.

Outlet Can be in Any Direction - Pivot outlet counter-clockwise to direction desired, approximately three revolutions needed to remove standpipe. Do NOT overtighten the standpipe by forcing a clockwise revolution of the outlet.

Non-Corrosive Construction - Quality, non-corrosive construction for years of service

Bottom Case - Has one-way flapper drain to remove any spilled water in case, plus cover over the drain on outside of case protects the drain from backfill

No Tools Required (after initial installation) - Hydrant riser pipe can be removed and reinstalled in seconds with only a few turns

Removable Riser Pipe - You can mow right over the bottom case with the riser pipe removed

No-Lead Compliance - Models available in both yard hydrants and straight

WARNING: This hydrant must have the standpipe removed and water drained out of the pipe when freezing temperatures may be present.

* ASSE Approved Vacuum Breaker and Outlet Valve Included ™¦ Ball Valve Included

Certifications & Warnings

Approved by states that require the approval for sanitary hydrants; Illinois, Indiana, Michigan, Ohio, and Wisconsin
