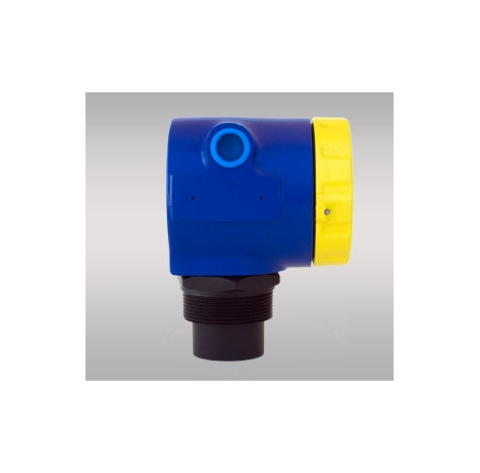

Flowline XP89-0 EchoSafe Ultrasonic Liquid Level Transmitter 10m (32.8') Range, 2" NPT

The explosion proof ultrasonic level transmitter provides continuous level measurement up to 32.8' (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. This non-contact liquid level sensor is well suited for corrosive, sticky or waste liquids, and is selected for bulk storage, day tank and process tank applications located within a classified area.

Features:

• Explosion proof level transmitter for use in hazardous areas
• Offered in 2 measurement ranges from 24.6' (7.5m) to 32.8' (10m)
• Configuration is simple via integral push button display module
• Type 4X aluminum XP windowed enclosure with dual conduit ports
• LCD display indicates level in inches, centimeters or percent of span
• Narrow 3" beam width for applications with limited measurement space
• Rugged PVDF transducer and process mounting plug for corrosive liquids
• Automatic temperature compensation for accurate measurement
