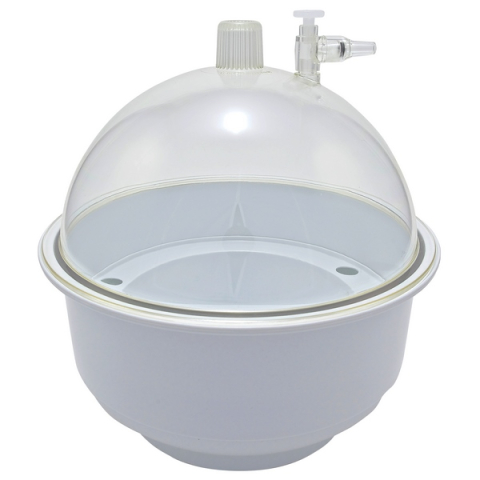

Dynalon 243065 Kartell Desiccator, PC/PP 285 mm

Implosion proof desiccators. Will take vacuum of -740 mm Hg with loss (absolute zero: -760 mm/HG) not exceeding 20 mm Hg in 24 hours. The transparent polycarbonate cover seals onto a neoprene ‘0' ring set into the flange of the PP base. A little grease spread on the ‘0' ring will assist in establishing initial vacuum. Within the desiccator is a removable pan for holding a drying agent. Vacuum release tap/non return valve assembly is included (Art. 229); specially grooved stopper in this assembly allows air, when required, to be re-admitted very slowly to avoid disturbing the contents.

Features:

• Unbreakable plastic desiccator cabinets
• Polycarbonate cover takes 8-10 mm tubing
• Polypropylene base and plates

Usage Instructions:

• Remove the cover in PC - insert the samples in the pan
• Open the vacuum retention valve (PE needle) connect the tube of the pump to the dessiccator spigot in order to create vacuum
• Close the vacuum retention valve
