Brigade Electronics 5344 Sidescan Sensor System with Mute Function and Speed Switch and Turn Indicator Trigger (12-24VDC)

Why Ultrasonic Proximity Sensors?

Reducing blind spots and improving driver visibility are important issues for operators of road-going vehicles. Over the past few years, safety devices such as additional mirrors or camera systems that give wider viewing angles have become commonplace, and even mandatory under blind spot legislation. However, despite an increase in visibility, collisions with other vehicles, fixed objects, cyclists, workers and even pedestrians, remain high.

Obstacle detection using ultrasonic sensors can minimise both vehicle damage and collisions with pedestrians or cyclists. Perfect for road-going commercial vehicles operating in confined spaces or manoeuvring at low speed, the detection system alerts the driver of obstacles close to the vehicle, whether moving or stationary. An audible and/or visual in-cab warning informs of distance, whilst an optional external speaking alarm can be added to alert cyclists and pedestrians that the vehicle is turning.

Sidescan^®

4 sensor system fitted to side of vehicle. Particularly relevant for the near side blind spot, where cyclists or pedestrians can otherwise go undetected.

• Underslung or flush mount sensors
• System can be activated below designated speed and/or turn indicator
• Intelligent mute function

SS-4100W-000:Sidescan^® Side sensor system with mute function, low speed trigger module and turn indicator sensor kit

Features:

• 1.0m or 1.5m detection range (selectable via dip switch).
• 2 sensitivity levels (selectable via dip switch).
• Buzzer with audible distance warning, LED & adjustable volume control.
• Buzzer will silence if there is no change in detection distance within 4 seconds.
• Environment Learning Mode (ELM) - Prevents false alarms from vehicle ancillary equipment intruding into the first 1m of the detection zone.
• Detection within 200ms.
• Configurable sensor mounting (through hole or under slung).
• Common components throughout UDS range.

Environmental Specifications:

• Vibration Rating: 5G
• Shock rating: 10G
• Connector & Sensor IP Rating: IP68
• ECU IP Rating: IP69K
• Operating Temperature: -30° to +80 °C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 12/24Vdc
• Current Consumption: 200mA at 12Vdc
• Power Consumption: 2.4 Watts at 12Vdc
• Buzzer Frequency: 2400Hz ± 200Hz
• Buzzer Volume: 72-90 ±5 dB at 30cm
• Sensor Frequency: 40KHz ± 2KHz
• No. of sensors: 4
• No. of detection zones: 3
• Zone distances:
  • Zone 1 = 0.00-0.60m
  • Zone 2 = 0.60-1.00m
  • Zone 3 = 1.00-1.50m
• Zone tolerance: ±10cm
• Min sensor height: >40cm
• Max sensor cable length: 10m
• Detection Angle: 90°(H), 60°(V)
• Cable Specification: 24 AWG
• Casing Material: Plastic
• Color: Black

Approved Standards:

• CE
• FCC
• "E" Mark (UNECE Regulation 10 revision 04)
• RoHS
• HALT

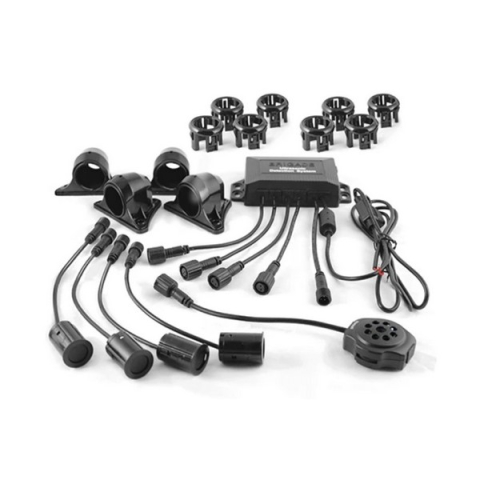

Package Contents:

• 1 x SS-4100W-ECU - System ECU
• 1 x UDS-001BZ - System Buzzer
• 1 x UDS-10BC - 10m Buzzer Cable
• 4 x UDS-000HSS - High Sensitivity Sensor
• 2 x UDS-2.5SC - 2.5m Sensor Cable
• 4 x UDS-4.5SC - 4.5m Sensor Cable
• 4 x UDS-11SS - 11° Sensor Sleeve
• 4 x UDS-00SS - 0° Sensor Sleeve
• 4 x UDS-SM - Under slung mounting
• 1x Low Speed Trigger Module (LS-60-A)
• 1x Turn Indicator Sensor (TS-001ECU)
• 1 x UDS-IG - Installation Guide
