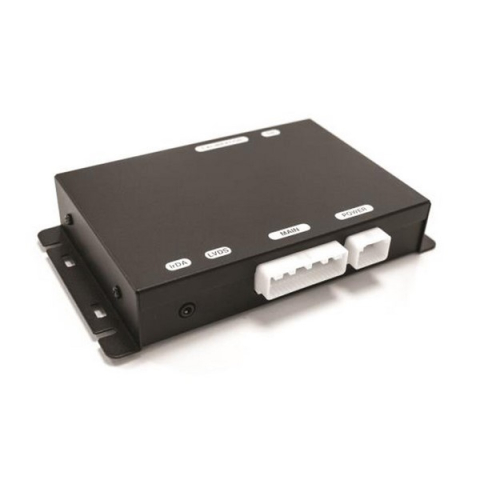

Brigade Electronics 5200 Backeye360 Camera System BN360-200 ECU + 4 x BN360-100C Cameras & Housings

Backeye®360 BN360-200, ECU + 4 x BN360-100C Cameras & Housings Kit

Features:

• 360° visibility using ultra wide viewing angle cameras
• Customisable 360° views:
• - Landscape or portrait configurations
• - Front and rear Crossing Traffic Views
• - Front and rear "top-down" focussed views
• - Left & right side lane changing views
• - Customisable vehicle position in 360° view
• On-screen configuration menu
• Configurable trigger functions (triggered view, off delay)
• Speed signal trigger (configurable input range)
• Configurable on screen parking markers
• Additional video output for recording native camera images (split screen view of all 4 cameras on single screen)
• 10 x OSD languages (EN,FR,DE,IT,ES,NL,PT,TR,PL,RU)
• For more information refer to Calibration, Installation & Operation Guide.

Environmental Specifications:

• Vibration Rating: 8.5G
• Shock Rating 50G
• Camera + Connector IP Rating: IP69K
• ECU IP Rating: IP30
• Operating Temperature: -30°C ~ +75°C
• Storage Temperature: -40°C ~ +85°C

Technical Specifications:

• Operating Voltage: 12/24V
• Current Consumption: ≤ 650mA at12V
• Power Consumption: ≤ 8W at12V
• TV System: NTSC/PAL
• Output Resolution: 720 x 480
• Camera Resolution: 640 x 480
• Camera Viewing Angle: 185°(H) x 142°(V)
• Number of Video Inputs: 4
• Number of Video outputs: 3
• Number of Triggers In: 4
• Dynamic Range: 63dB
• Required Illumination: 0.5 Lux
• Video output 1.0 Vp-p / 75Ω
• ECU Overall Dimensions: 174 x 101 x 30mm
• Camera Overall Dimensions: 36 x 61 x 46mm
• System Weight: 1170g
• Length of Cable:
• - Camera: 1000mm
• - ECU power 1500mm
• - ECU video output 1560mm
• Cable Thickness:
• - Power Cable: 20AWG
• - Trigger Cable: 22AWG
• ECU Casing Material: Aluminium
• Camera Casing material: ALDC12
• Camera Housing material: Die Cast Zinc Alloy
• ECU Color: Black
• Camera Color: Black
• Camera Housing Color: Silver

Approved Standards:

• CE - (EN 61000-6-1:2007 / EN 61000-6-3:2007)
• ‘E' Mark - (ECE Regulation 10 Rev 05)
• EMC for Earth Moving Machinery - (ISO 13766:2006)
• EMC for Construction Equipment - (EN13309:2010)
• FCC - (47 CFR Part 15 Subpart B)
• Industry Canada (ICES-003)
• Elements of ISO 16750:2012
• Ingress Protection - (ISO 20653:2006)
• WEEE
• RoHS

Package Includes:

• 1x ECU
• 1x ECU Power Harness
• 1x ECU Interface Harness
• 1x Video Output Cable
• 1x Set-up & View Select Button
• 1x IR Receiver + Remote Control
• 4x Camera with Mount, Housing, Gasket + Fixing Kit
• 1x User Guide
