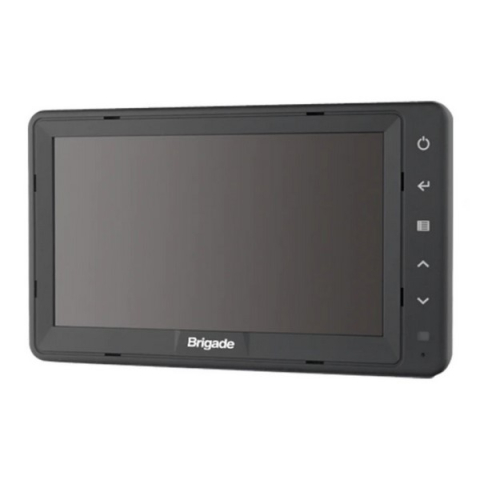

Brigade Electronics 4368A Select Monitor 7" LCD Monitor ONLY

Select Monitor, 7 Inch LCD Monitor ONLY

Features:

• High Quality Digital LCD with LED backlight.
• Low Reflection TFT LCD (Anti Glare Coating)
• Integrated light sensor for picture dimming and Touch Keypad illumination.
• Integrated speaker.
• Automatic Detection of PAL or NTSC Signal.
• Shutter camera support on VBV-770M-S
• 8 x On Screen Display (OSD) languages: (English, French, German, Spanish, Italian, Dutch, Portuguese, Russian)
• Configurable Trigger off Delay (0-20 sec.)
• Configurable Auto Scan Delay (0-20 sec.)
• 2 Variations of Electronic On Screen Markers.
• Compatible with Remote Control VBV-7X0DM-RC.

Environmental Specifications:

• Shock Rating: 100 G
• Vibration Rating: 4 G (All 3 axis each 32hr random)
• Connector IP Rating: IP40
• Monitor IP Rating: IP30
• Operating Temperature: -30° to +70 °C
• Storage Temperature: -30° to +85°C

Technical Specifications:

• Operating Voltage: 12 / 24 Vdc
• Current Consumption: ≤ 1.5A at 12Vdc
• Power Consumption: ≤ 18W at 12Vdc
• TV System: PAL / NTSC
• Display Size: 7.0" (diagonal)
• Resolution: 800 x (RGB) x 480
• Contrast Ratio: 500:1
• Brightness: 400 cd/m²
• Display Viewing Angle: 50(T), 70(B), 70(L), 70(R)
• Number of Triggers Inputs: 3
• Speaker Rating: 8Ω at 1 Watt
• Monitor Dimensions: (Without Sunshield) 195.5 mm (W) x 25.5 mm (D) x 117.5 mm (H)

Approved Standards:

• CE - (EN 61000-6-2:2007 / EN 61000-6-3:2007)
• ‘E' Mark - (ECE Regulation 10 Rev 04)
• FCC - (47 CFR Part 15 Subpart B)
• HALT
• RoHS
• WEEE
