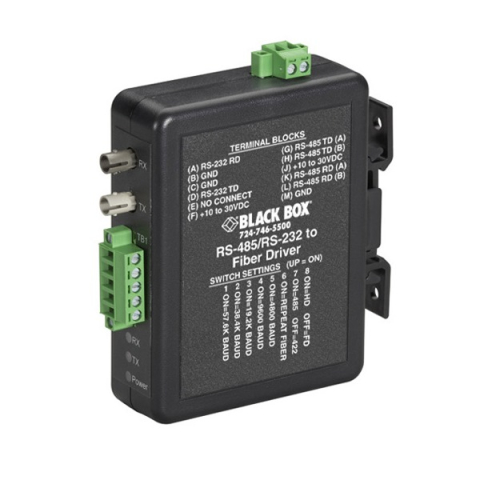

Black Box MED101A Async RS232/422/485 (2) Extender Fiber - Terminal Block to ST Multimode

Extend RS232, RS422 or RS485 protocols over multimode fiber so different types of equipment can talk to one another in point to point or multipoint industrial environments.

Features

• Communicate signals in a point-to-point or ring topology.
• Ideal for fiber applications that use different interface protocols.
• Extended ambient operating range
• Data-derived or RTS transmit/receive switching (RS-485).
• Indicator LEDS monitor signal and power.
• Three-way isolation, 2000-V input/output.
• Enables any two async serial devices to communicate half- or full-duplex over two multimode ST fibers at distances up to 2.5 miles (4 km).
• RS-232 signals are supported up to 115.2 kbps; RS422 or RS-485 signals are supported up to 460.8 kbps.
• Fiber optic cabling makes it immune to EMI/RFI and transient surges. It's ideal for data communications near heavy electrical equipment and other electrical or radio interference!
• Replaces converters and isolators when you connect remote equipment.
• Modbus ASCII or RTU compatible.
• Automatic Send Data Control eliminates the need for driver software.
• Removable terminal blocks.
• Conveniently mounts on an optional DIN Rail.

NOTE(s):
Product works with:

• DIN Rail (DR100)
• DIN Rail 12-VDC Power Supply (PSD100)
