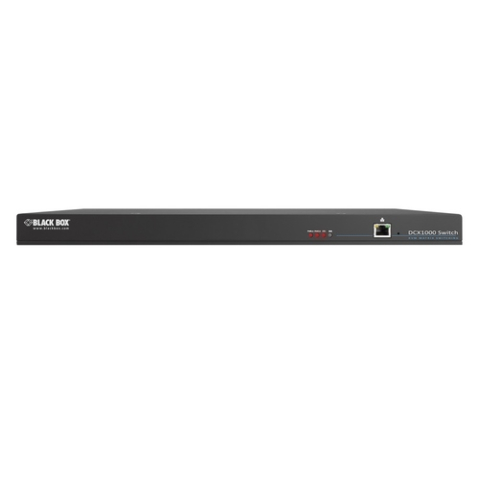

Black Box DCX1000 DCX Digital KVM Matrix Switch - 10-Port

A flexible 10 port KVM Matrix which can be re-configured to match your exact requirements.

Small, yet powerful. Small in size, but large in features and performance, the DCX Digital KVM Matrix Switch is an ideal solution for process monitoring and control, broadcast studios, medical labs, testbeds, and advanced data centers where the personnel numbers are lower than in enterprise-sized organizations.

Slim chassis and small SAMs. The DCX Digital KVM Matrix Switch is an attractive option for small to medium applications with ports to support a combination of users and servers, with a supported maximum of 23 CPUs/servers.

Interface-powered server access modules (SAMs) extend DVI or DisplayPort and USB signals over shielded CAT6 or higher rating. In a Matrix setup, the SAM (Server Access Module) can be up to 10m from the DCX switch, and the User Station can be up to 50m away from the DCX switch using shielded category rated cabling. In a Point to Point setup where the SAM (Server Access Module) connects to the DCX Receiver directly, you may extend up to 50m from the SAM to the Receiver. The SAMs support audio via the USB interface, and the receiver can output the audio through the 3.5-mm jack.

Price point is on point. Not every broadcast studio or control room needs a large, expensive KVM matrix switch with all the bells and whistles. The DCX Digital KVM Matrix Switch has an attractive price point for smaller applications while still providing crystal-clear video and fast matrix switching.

Intuitive user interface. The unique and easy-to-use graphical interface is more intuitive to use than a text-based on-screen menu (OSD). Choose from auto-refreshed preview thumbnails, which are larger and easier to see. The GUI shows all connected devices in a layout that makes the matrix simple to view at a glance.

Zero compression, pixel perfect. The DCX Digital KVM Matrix Switch delivers every pixel of every video frame with zero compression and zero latency, fulfilling the needs of even the most demanding graphical applications and guaranteeing perfect video synchronization for multiple display applications.

Secure configuration. Secure system configuration is provided by the Web user interface, which is also compatible with tablet and mobile devices. The UI gives an administrator control for connected devices, enabling the choice of video only, shared, private, or exclusive access modes to be set up. In private mode, other users are able to view the shared video but have no keyboard and mouse access to the target. In exclusive mode, no other user has access to the configuration.

Features:

• High-performance HD KVM matrix switching system
• 10 configurable user/computer port digital KVM matrix switch
• Supports multi-view thumbnail on-screen display
• Supports server access modules (SAMs) and receivers using shielded CAT6 cable
• KVM extension distance of up to 32 feet (10 m) from server access modules (SAM) to switch and up to 164 feet (50 m) from switch to remote
• Provides Zero U DVI, VGA, and DisplayPort Server Access Modules
• USB port for keyboard, mouse and touchscreen

Single-run Shielded Cat6a or Cat7 cable recommended for maximum performance, see manual for cable/distance specifications.

Product Includes:

• (1) 10-Port Digital KVM Matrix Switch
• (1) 12VDC, 1.5 Amp Power Supply with Power Cord
• (1) 19" Rackmount Ears with Mounting Hardware

This product works with:

• Server Access Module SH DisplayPort USB-HID Audio DCX Series
• Receiver SH DVI-D USB-HID Audio DCX Series
• Server Access Module SH DVI-D USB-HID Audio DCX Series
• Server Access Module - VGA
• Rackmount Kit for Freedom II KM 8-Port Switch - KV0084A-R2
• Spare Power Supply for KVM Devices - 12VDC, 1.5 Amp
