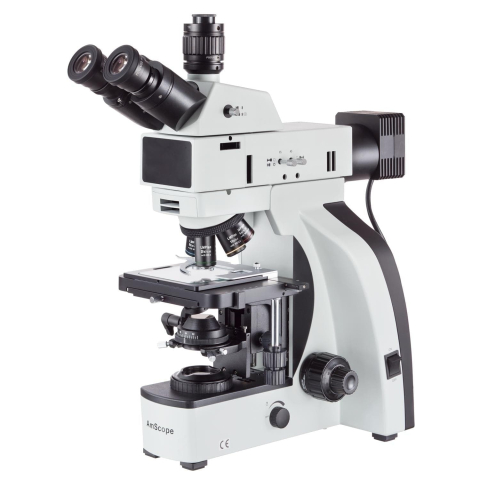

AmScope T800MB-MF603 T800 Series Metallurgical Trinocular Compound Microscope 50X-1000X Magnification with Dual-Illumination and 6MP Camera

T800 Series Metallurgical Trinocular Compound Microscope 50X-1000X Magnification with Dual-Illumination and 6MP Cooled Color CCD Camera

Key Features:

50X to 1000X magnification with 6 unique settings for metallurgical and biological applications.

A robust, high-performance dual-illumination metallurgical microscope with superior optics and mechanical design

The trinocular head provides a dedicated photo port for mounting a camera.

Super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification

The infinity-corrected optical system reduces distortion and improves color accuracy.

The quintuple lens turret is equipped with four plan-semi-apochromatic objective lenses producing high-contrast images with edge-to-edge sharpness.

6MP highly-sensative color CCD camera for low-light applications with active cooling for reduced noise-floor

Professional software suite for Windows with advanced imaging functions and fluorescence tools. Lite version for Mac and linux

The T800M is a robust, high-performance metallurgical microscope with precision optics for professionals metallurgical and materials fields. The larger heavy-duty frame provides stability along with precision mechanics. The infinity-corrected plan-semi-apochromatic optics provide high-resolution images with improved color-correction and edge-to-edge sharpness. The Koehler transmitted and reflected-light illumination systems are designed for precision, with a variable-NA swing-condenser allowing the use of high and low magnifications with full, even coverage.

Viewing Head

The microscope's head is designed for precision and comfort. The super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. Compensation-free Siedentopf interpupillary adjustment allows any user to properly align the oculars without readjusting focus. For users with astigmatism or asymmetrical vision, the left ocular can be adjusted to fine-tune focus. The photo port is equipped with a C-mount interface for attaching cameras without intermediary lenses, and is height-adjustable to match focus with the eyepieces. The port is compatible with our CX series C-mount ports which are available with different levels of magnification for cameras with different sensor formats. An optional 23mm port adapter is available for use with 23mm reduction lenses. The head is set to a 30° incline which is ideal for viewing from a standing position, and it can be rotated 360°.

Optics

The infinity-corrected optical system eliminates optical errors when using filters and other in-line components, ensuring highly precise images. The quintuple objective turret provides instant access to 4 magnification levels with an open port for one additional lens. This allows you to efficiently move through magnifications from 50X to 500X. Additional 20X eyepieces expand the maximum magnification to 1000X with 6 unique levels. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are semi-apochromatically corrected for superior resolution and color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.

The Stage

The 3-layer mechanical stage provides smooth and precise movement for examination of specimens, with a large translation range for viewing larger samples. A glass stage-insert provides a charge-neutral surface for examining electonics and other sensitive materials. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Symmetrical focus controls are coaxially mounted for fast, intuitive focusing. Tension control lets you customize the feel to further enhance your workflow.

Koehler Episcopic Illumination

A powerful 5W LED provides warm-colored light for reflected-light applications. Equipped with centerable field and aperture diaphragms, contrast and depth can be fine-tuned for the best results. The low color-temperature LED provides better illumination for metals and other materials which present details in longer wavelengths, as well as reducing eye-strain during prolonged use.

Koehler Transmitted Illumination

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The rear-mounted 5W LED light-source provides energy-efficient illumination with low heat. The super-bright light-source uses a lower color temperature for warmer colors to enhance details and reduce eye-strain. The light condenser uses a swing mechanism for optimized lighting at both high and low magnifications, with a NA0.22 setting for full coverage at extremely low magnifications. An iris diaphragm allows you to adjust the aperture to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The condenser is top-mounted for easier replacement when working with additional condensers. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.

Digital Imaging

The ultra-sensitive 6MP digital camera provides a temperature-controlled, low-light imaging solution, ideal for fluorescence microscopy. The large, highly-sensitive CCD sensor produces low-noise images, thanks in-part to a controllable internal cooling unit. The camera captures still images and video, and allows you to view a live stream on your PC. Because of the CCD's "global shutter" design, it eliminates rolling-shutter artifacts. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Packing List:

One trinocular head

One microscope body

One C-mount photo port adapter

Four objective lenses: 5X, 10X, 20X, 50X

One pair 10X eyepieces

One pair 20X eyepieces

One stage assembly

One swing condenser

One LED episcopic illuminator assembly

One LED transmitted light-source

One AC power adapter (US and Canada standard)

One hex driver

One dust cover

One sample immersion oil

One C-mount TEC USB camera

One power adapter

One AC power cord (North America plug)

One USB 3.0 cable

One software CD

One heavy-duty case
