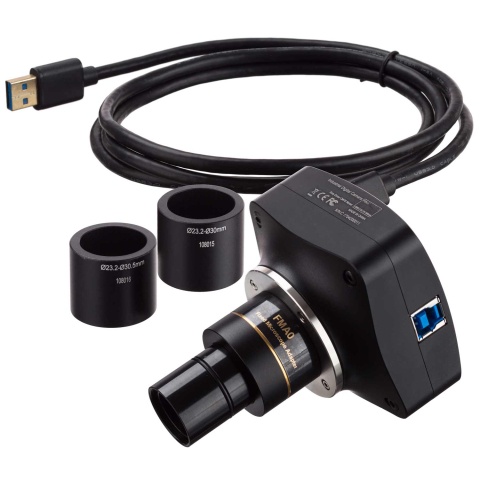

AmScope MU313M-GS 3.1MP Monochrome Global-Shutter CMOS USB 3.0 Microscope Camera

AmScope MU Series 3.1MP Monochrome Global-Shutter CMOS USB 3.0 Microscope Camera

• Highly-sensitive monochrome 3.1MP USB 3.0 camera for microscopy
• Cutting-edge global-shutter CMOS technology provides better precision in capturing subjects in motion
• High responsivity improves quality and reduces capture times for fluorescence and darkfield applications
• Professional software for PC with extensive imaging tools specific to microscopy
• Includes calibration slide for on-screen measurements

This monochrome version of our 3.1-megapixel global-shutter camera provides better effective sensitivity by removing the color filter-array. The MU313M-GS uses Sony's cutting-edge 3.1-megapixel global-shutter CMOS sensor for high resolution with high quantum-efficiency. As well, larger well-capacity extends the dynamic-range for better capture of strong and weak emissions. The global shutter improves imaging of moving subjects through simultaneous pixel-capture, avoiding the focal-plane distortion seen in rolling-shutter sensors.

With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
