Accuform RAK114T IIAR Self-Stick Ammonia Pipe Marker: LTRL/LIQ/LOW, IIAR SS OD 8" - 10"

IIAR Self-Stick Ammonia Pipe Marker: LTRL/LIQ/LOW, IIAR SS OD 8" - 10"

Label system, physical state, and pressure level with Self-Stick marker for LTRL/LIQ/LOW.

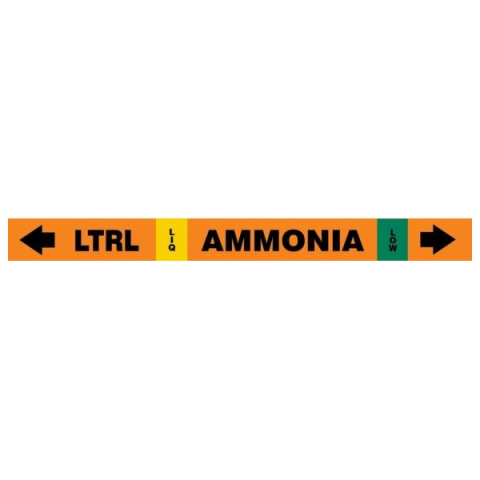

Self-Stick pipe marker identifies ammonia refrigeration piping and system components: LTRL/LIQ/LOW

Chemical System: Low Temperature Recirculated Liquid; Physical State: Liquid; Pressure Level: Low

Meet the International Institute of Ammonia Refrigeration (IIAR) guidelines for proper marking of pipes as specified in Bulletin No. 114, March 2014

IIAR pipe markers contain the ammonia name and identify the chemical's system, physical state, pressure level, and directional flow

Product Description

Self Stick - 4-mil flexible vinyl has high-tack acrylic adhesive back with peel-off liner. Displays one legend with directional flow arrows on each end to cut off for proper placement. UV-resistant surface withstands dust, dirt, and grease. Temperature range is -20° to 176°F. Install onto clean, smooth pipe surface.

Pipe OD 3/4" - 1 1/4" = Marker Size 1" x 11"

Pipe OD 1 1/2" - 2" = Marker Size 1 1/2" x 15 7/8"

Pipe OD 2 1/2" - 6" = Marker Size 2 1/2" x 23 5/8"

Pipe OD 8" - 10" = Marker Size 3 1/2" x 33 1/2"



Identify Ammonia refrigeration piping and system components.

- 4-mil flexible vinyl, Self Stick markers have high-tack acrylic adhesive back with liner

- One legend with directional flow arrows on each end to cut off for proper placement

- Glossy, UV-resistant surface withstands dust, dirt, grease

- Service temperature range is -20° to 140°F

- Install onto clean smooth pipe surface
