Weber Sensors 4121.12M Flow-Captor Flow Switch for Oil-Based Media with Analog LED Display (0-0.3m/s to 0-3m/s Range) SS Housing M12

Flow switch for liquid media Flow-Captor 4121.12M

The flow-captor 4121.12M is ideally suited for use in automation processes or other industrial applications where liquid media must be monitored. The sensor works according to the calorimetric measuring principle, fully electronic and without mechanically moving parts. The flow-captor detects the flow velocity of the medium and converts it into an electrical signal.

Features:

• Robust stainless steel construction (special encapsulation)
• High switching accuracy even with slower flows
• Separate adjustment of set point and range
• Display of the flow and the switching point via LED chain
• LED for output status
• Precise switching flow monitor
• ISO 9001:2015

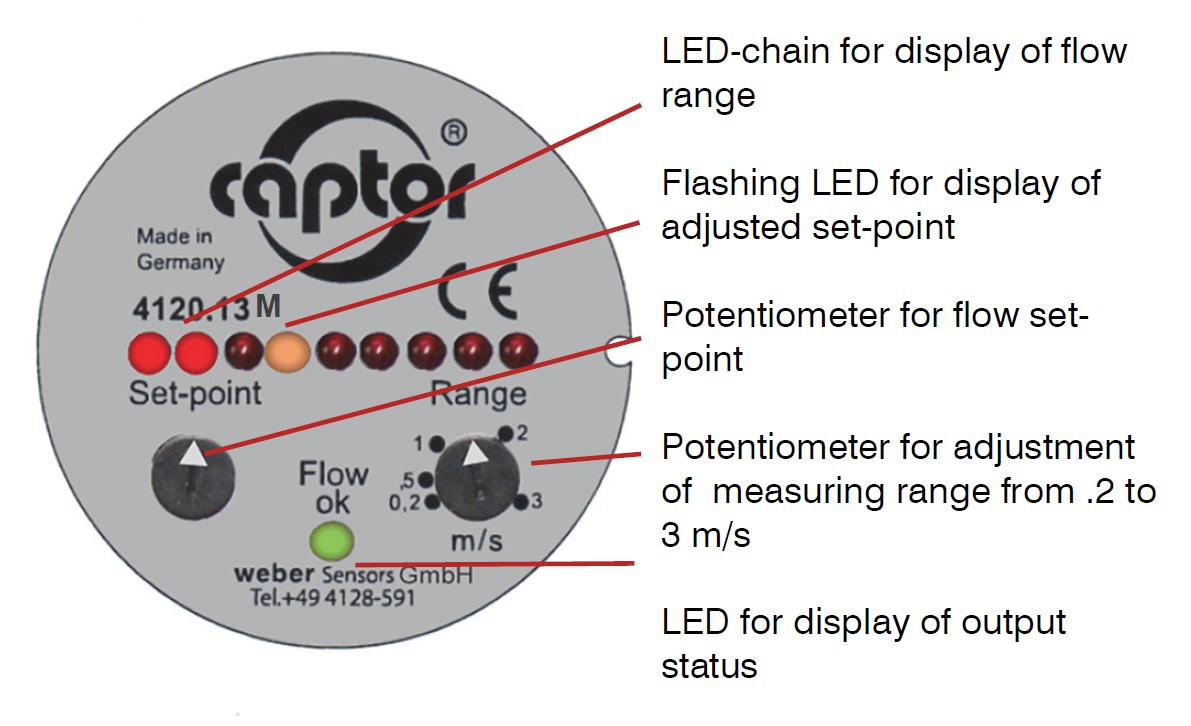

Control and Display Panel

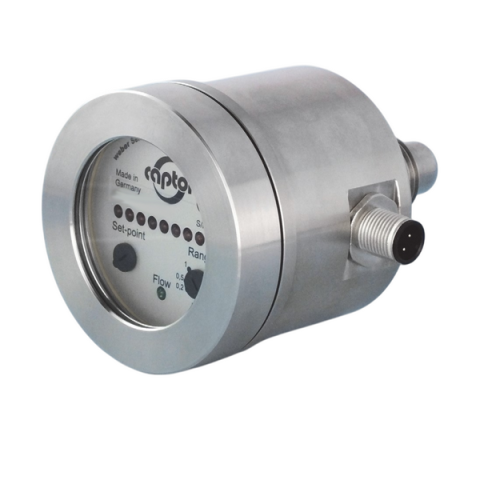

Sensor Head

The sensor head is constructed of only one piece of electropolished stainless steel and without any sensor element intruding into the medium. Easy installation by means of T-piece or welded fitting. The electronics inside is completely epoxy resin encapsulated.

For more information, please see Instruction Manual
