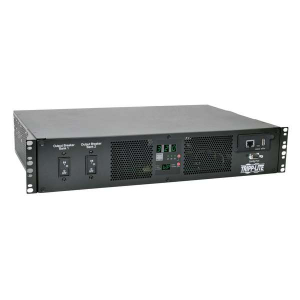

Tripp-Lite PDUMH32HVATNET 7.7kW Single-Phase Switched Automatic Transfer Switch PDU Two 200-240V IEC309 32A Blue Inputs 16-C13 2-C19 Outlets 2U TAA

The PDUMH32HVATNET 7.7kW Single-Phase 200-240V Switched Automatic Transfer Switch / ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Primary and Secondary Inputs for Power Redundancy

• The PDUMH32HVATNET rack PDU (rPDU) provides remote power monitoring and enables redundant power for network devices single-corded and other non-redundant power supply configurations
• Dual 3m input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase power sources

Automatic Transfer Switching

• Dynamic solid-state (TRIAC) automatic transfer switching
• Switches to secondary power source if primary source fails or becomes unstable
• 1-5 ms transfer time ensures uninterrupted operation of connected equipment
• Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source

Multifunction Digital LED Display

• Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor

Advanced LX Platform Interface

• LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
• Real-time load/current data with billing-grade accuracy (+/- 1 percent)
• Automated alerts help prevent accidental overloads, power loss and downtime
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

Broad Communications Compatibility

• Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP

Breaker Protected Output Load Banks

• Protect each of 2 single-phase output banks
• Front-panel LED indicates when breaker has tripped

Cord Retention Sleeves

• Set of Plug-lock output power cable retention sleeves prevent accidental disconnection of connected devices

Mounts Horizontally in 2U of Rack Space

• Compatible with EIA-standard 19 in. 4-post racks and rack enclosures

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Package Includes

• PDUMH32HVATNET 7.7kW Single-Phase 200-240V ATS / Switched PDU
• Rack-mounting brackets
• Plug-lock cable retention sleeves
• USB configuration cable
• Owner's manual

For more information, please see Data Sheet
