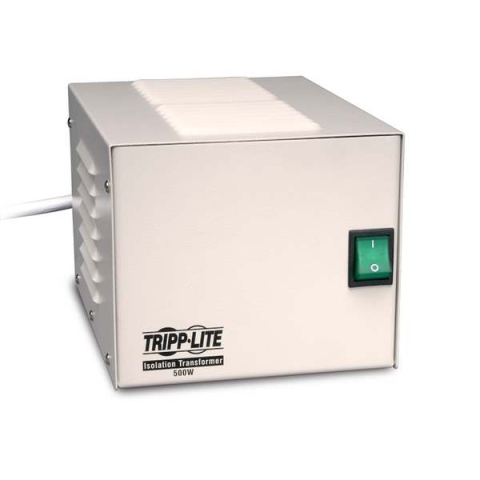

Tripp-Lite IS500HG Isolator Series 120V 500W UL 60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets

Highlights

• Complete line isolation & noise filtering
• Hospital-grade plug and receptacles
• Lowers cumulative leakage current of connected equipment to under 100 μA
• Floating AC output prevents noise coupling
• TAA-compliant

Package Includes:

• IS500HG Isolation Transformer
• Instruction manual with warranty information

Features:

• Offers line isolation and continuous noise filtering
• Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line
• Full UL 60601-1 medical-grade listing with hospital-grade plug and outlet receptacles for the protection of sensitive electronic equipment in patient-care areas
• Reduces cumulative leakage current of the Isolator and connected equipment to levels less than 100 μA
• Floating AC output prevents noise coupling from noisy hospital ground circuits
• Inexpensive alternative to dedicated circuits and site electrical upgrades
• Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops
• Transformer filtering offers continuous common-mode noise rejection with no wearable parts
• Reduces 6000V IEEE587 Cat A & B ring wave and combination wave test surges to only 0.5V common mode
• Includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, 10-ft. (3.05 m) power cord, hospital-grade input plug, circuit breaker overload protection, lighted power switch and rugged all-metal unit housing

For more information, please see DataSheet
