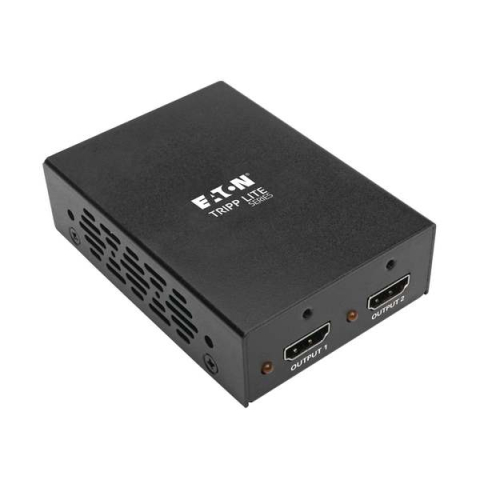

Tripp-Lite B118-002-UHD-2 2-Port HDMI Splitter HDCP 2.2 4K 60 Hz HDR TAA

The B118-002-UHD-2 2-Port 4K 3D HDMI Splitter transmits a UHD 4K at 60 Hz (3840 x 2160) audio/video signal from an HDMI source, such as a Blu-ray player or computer, to two HDMI monitors, projectors or televisions at the same time. Ideal for classrooms, churches, offices, restaurants, bars, trade shows and anywhere else featuring 4K x 2K digital signage, the B118-002-UHD-2 is quick and simple to install with no software or drivers necessary.

Using standard 28 AWG HDMI cabling, this splitter can transmit a 4K (3840 x 2160) signal up to 15 feet (4.6 meters). It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound, as well as 36-bit Deep Color (12 bits per channel). The Full 3D-compliant B118-002-UHD-2 also supports HDCP 2.2 for up-to-date content protection.

Note: The B118-002-UHD-2 sends the same image to all connected displays. If you would like to extend an image over multiple displays, you will need an MST hub, such as the B156-002-HD-V2.

Transmits a 4K HDMI A/V Signal to 2 HDMI Displays Simultaneously

• Recommended for 4K digital signage in classrooms, churches, offices, restaurants, bars, trade shows, etc.
• Distributes A/V signals up to 15 ft. (4.6 m) when used with standard 28 AWG HDMI cable
• Supports UHD resolutions up to 4K at 60 Hz for crystal-clear video
• Compliant with HDCP 2.2 and EDID to ensure compatibility with latest A/V hardware
• Cascade up to 3 levels of splitters together to increase the number of connected monitors up to 32.

Supports the Most Up-To-Date Features and Formats

• Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
• Full 3D
• DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound audio
• 36-bit Deep Color (12 bits per channel)
• Video amplifier bandwidth of 600 MHz/6 Gbps per channel (18 Gbps total)
• Lip sync pass-through, xvYCC and x.vColor

Easy to Use Almost Anywhere

• Plug-and-play operation with no software required for easy, immediate installation
• Supports desktop use or wall-mounting using included hardware
• Power supply includes international plug adapters (North America, Europe, U.K. and Australia)

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

• HDMI Source
• HDMI Monitor(s)

Package Includes

• B118-002-UHD-2 2-Port 4K 3D HDMI Splitter
• External power supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)
• International plug adapters (North America, Europe, U.K. and Australia)
• Mounting hardware
• Owner's manual

For more information, please see Data Sheet
