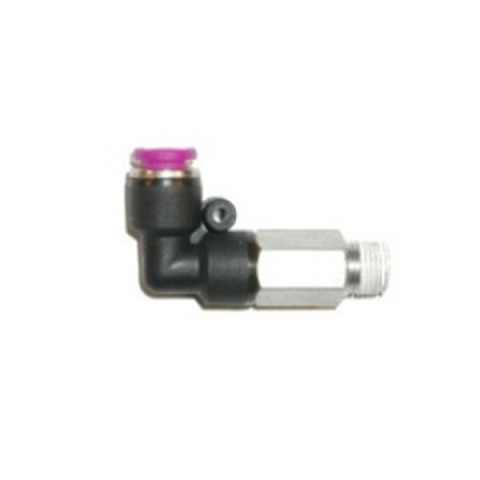

STC EE 1/4 N1/8 K Extended Elbow 1/4 Tube Outside Diameter 1/8 NPT Thread Size
Click to zoom
  • Brand:STC
  • Part #:EE 1/4 N1/8 K
Factory Warranty
Warranty
Condition
Condition: new
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

Features:

  • Extended Elbow Connector
  • K Series-Black Button
  • Tube OD: 1/4 OD Tube
  • Thread Size: 1/8 NPT
  • A: 7.5
  • B: 39.7
  • E: 19
  • H: 12.7

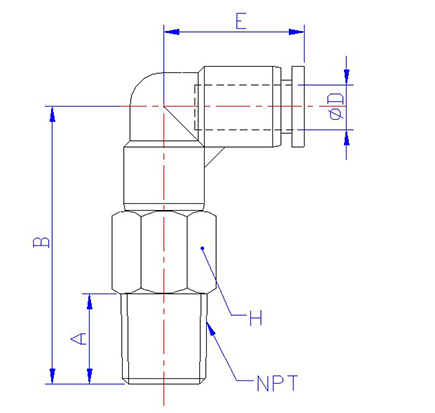

STC EE Extended Elbow Dimension Diagram

Note: The EE (Extended Elbow) is designed to be higher than a ME (Male Elbow) of the same size, so that when installed side by side, the EE can be rotated above the ME and the tube from the EE can go over the ME.
