04945-500 Rope Operated Sequence Switch Rotation 90 by Rees

00 Reviews Write review

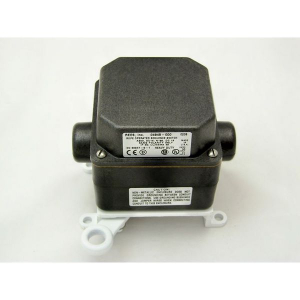

04945-500 Rope Operated Sequence Switch Rotation 90 by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:04945-500
  • SKU:ID105700
Condition: new
Warranty

Overview


The following 'slack cable' style switch has 1 NO and 1 NC 'Slow-Make' contacts for use in normal start-stop applications.  This switch does NOT latch in any position and should only be used for non-emergency applications.

The action of this switch is that when the switch actuating arm is pulled by a cable the switch contacts will change state, the NO will close and the NC will open.  When the force on the cable is removed from the actuator arm, spring pressure will return it to its normal position, while the contacts are held in position through a ratchet mechanism.  The next time the cable is pulled, the action is repeated and the contacts return to their original state.

The housing and cover are made from a glass filled black polycarbonate.  The mounting base and double end actuator arm are die cast from a high strength zinc alloy powder coat.

Each captive terminal on the replaceable contact block will accept (2) #14 AWG stranded wires.

  • Unique 'Pull-On', 'Pull-Off' function
  • Gold plated contacts eliminate high resistance tarnishing
  • External steel components are made from #303 stainless
  • Nema 4X (indoor), IP 66

The action of this switch is that when the switch actuating arm is pulled by a cable the switch the NO contacts will close.  When the force on the cable is removed from the actuator arm, spring pressure will return it to its normal position, while the contacts are held in position through a ratchet mechanism.  The next time the cable is pulled, the action is repeated and the contacts return to their original state.

The housing and cover are made from a glass filled black polycarbonate.  The mounting base and double end actuator arm are die cast from a high strength zinc alloy powder coat painted white.

There are two 12 ''NPT conduit openings on this switch are at 9 o'clock and 3 o'clock in relation to the mounting feet.  The maximum cable recommended cable length is 200 feet with a maximum interval support of 10 feet.

The mechanical life of the switch is in excess of 150,000 mechanical and 1,000,000 electrical operations.

This type of device can be found on various conveyor installations as well as other stations that require the 'pull-on', 'pull-off' function.

Electrical Ratings

HEAVY DUTY - A600 / N150

Listed under UL 508 - File # E 58589

Certified under CSA C22.2 - File # LR 3648

CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range

Operating:  +32oF to +131oF (0oC to +55oC)

Storage:  -40oF to +185oF (-40oC to +85oC)

Note:  Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulations and standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
