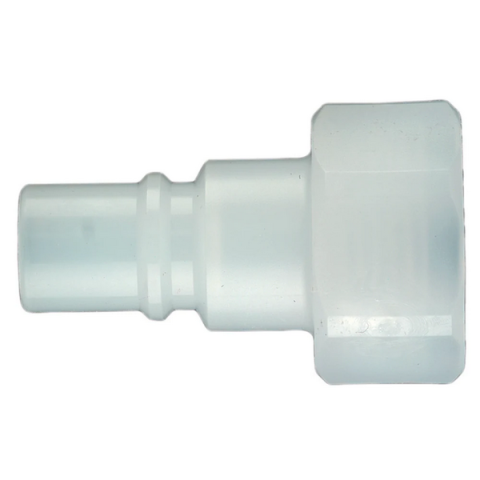

Parker 48SFIW17FXX Series 48 3/8" Straight-Through PVDF Quick Coupling with Parker Profile, Female, BSPP ISO 228 Parallel, Without Seal, Plug Type

Parker 48SFIW17FXX Series 48 3/8" Straight-Through PVDF Quick Coupling with Parker Profile, Female, BSPP ISO 228 Parallel, Without Seal, Plug Type
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Parker
  • Part #:48SFIW17FXX
  • Model #:Series 48
Condition: new
Warranty

Contact Us

Overview

Quick coupling system with nominal diameter 7 for pneumatic and fluid handling applications up to 10 bar. Coupling system with Parker profile.

Parker's Quick Coupling Series 48 made of POM and PVDF has been developed for use in the medical, chemical, food handling, pharmaceutical and laboratory technology industries. The system is also available in a solid plastic design (RectuChem+). Here the metal springs are replaced by springs made of PEEK, an extremely resistant synthetic material.

The coupling system is developed for single-hand operation. The color coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling.

Features:

  • Splash proof design - Plug is sealing prior to opening the valve.
  • Only provider of a complete thermoplastic coupling (with PEEK spring)
  • No mix-ups between media due to the color coding of coupling and plug
  • Single-hand operation for easy and fast connection
