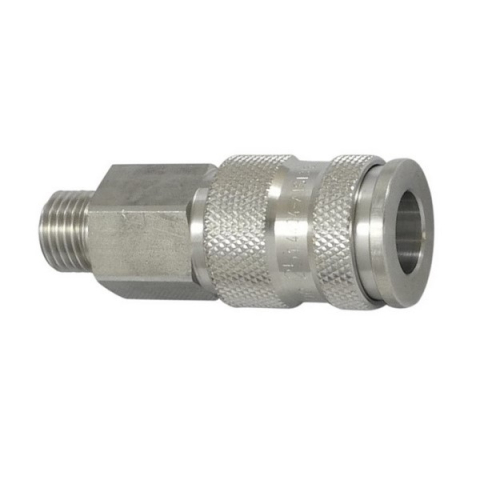

Parker 25KAAN13RVX8 Series 25 1/4" Color Coded SS303 Coupler with Valve, Male NPT (Red Octagonal)

Parker 25KAAN13RVX8 Series 25 1/4" Color Coded SS303 Coupler with Valve, Male NPT (Red Octagonal)
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Parker
  • Part #:25KAAN13RVX8
  • Model #:Series 25
Condition: new
Warranty

Contact Us

Overview

SERIES 25 KA - 1/4" Body - Automatic Single Shut-Off - NOMINAL PLUG BORE .31" - coded industrial coupling system developed on the basis of series 25. Coupling system with single-hand operation. UltraFlo valve for optimum flow and low pressure drop. The mechanical coding of the coupling and plug offers a guarantee for avoiding mix-ups between media when coupling, which is complemented by the color coding of the anodized sleeves.

Working Temperature: depending on medium
-4°F up to +210°F (NBR)
-40°F up to +250/300°F (EPDM)
+5°F up to +400°F (FKM)
+32°F up to +600°F (FFKM)
Working Pressure: 500 psi, maximum static working pressure with 4:1 design factor
