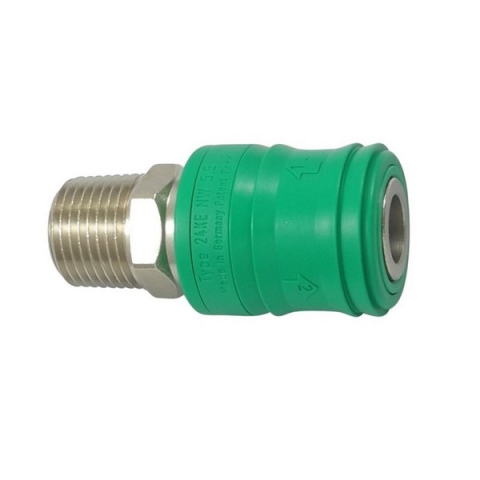

Parker 24KEAK21MPN Series 24 1/2" Premium Brass Nickel Plated Coupler with Valve & Self-Venting System, Male, BSPT

Parker's Premium Safety Quick Coupling Series 24 is a safety coupling with a self-venting system according to ISO 6150 B. The self-venting takes place during disconnection with no risk of pressurized hoses being tossed around. When the sleeve is pulled back, the plug is released yet remains locked in. The coupling valve closes, and the air is vented from the air line at the same time. Only then, by operating the sleeve again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 - increased safety standards in the work place. The plastic sleeve does not scratch working surfaces.
Markets:

• Machinery construction
• Automotive

Features/Benefits:

• Safety coupling with self-venting mechanism according to ISO 6150 B
• No whiplash effect due to the self-venting which takes place during disconnection
• Plastic sleeve - no scratching of the working surfaces

Applications:

• Pneumatic Tools
• Pneumatic Airline Systems
• Assembly Lines
