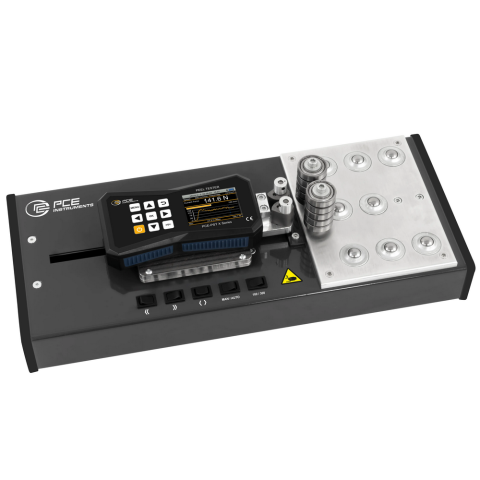

PCE Instruments PCE-PST 1 X Test Device for Peel Tests

Test Stand to measure the adhesive force on carrier materials / mobile, robust design / up to 500 N / high accuracy / internal memory

The Test Stand is a compact hand-held meter with an integrated load cell for the precise measurement of forces within a range from 0 to 500 N. The Test Stand has been specially developed for peel tests and enables a comprehensive assessment of the processing quality. Our Test Stand offers a manual and automatic measuring mode, as well as ball rollers on the guide surface to reduce the coefficient of friction.

It has an adjustable sampling rate from 2 to 100 Hz and supports both metric and imperial units of measurement. The measurement duration consists of the pre-run time, measuring time and post-run time, which can be individually configured from 0 to 10 seconds. The integrated data logger saves measurement series as well as individual measurements and displays statistical values such as average, minimum and maximum values as well as graphical curves. With a maximum traverse distance of 150 mm and two traverse speeds (100 mm/min and 300 mm/min), the Test Stand is highly adaptable to different test requirements.

It is used for testing composite materials such as coated wood-based materials, laminated surfaces or veneered panels as well as for measuring the adhesive strength in bonded joints of various components.

Features:

• for adhesive forces up to 500 N
• high repeatability
• portable
• automatic and manual measurement mode
• average measurements
• adjustable pre-run and post-run

Includes:

• 1 x test stand for peel tests PCE-PST 1 X-STAND
• 1 x handheld Test Stand PCE-PST 500 X
• 1 x USB-C cable
• 1 x desktop power pack 24 V / 5 A
• 1 x carrying case
• 1 x quick start guide
