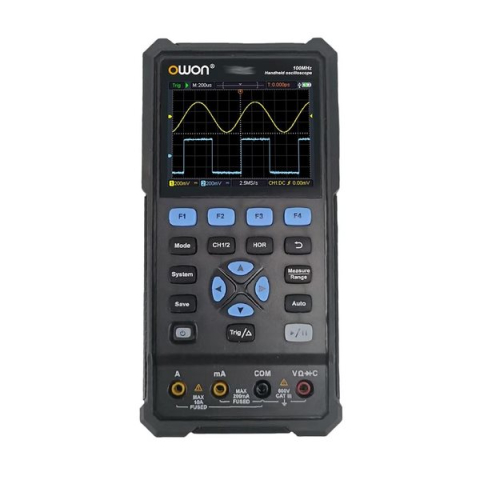

Owon HDS320S HDS300 Series Digital Oscilloscope 200MHz 1GSa/s

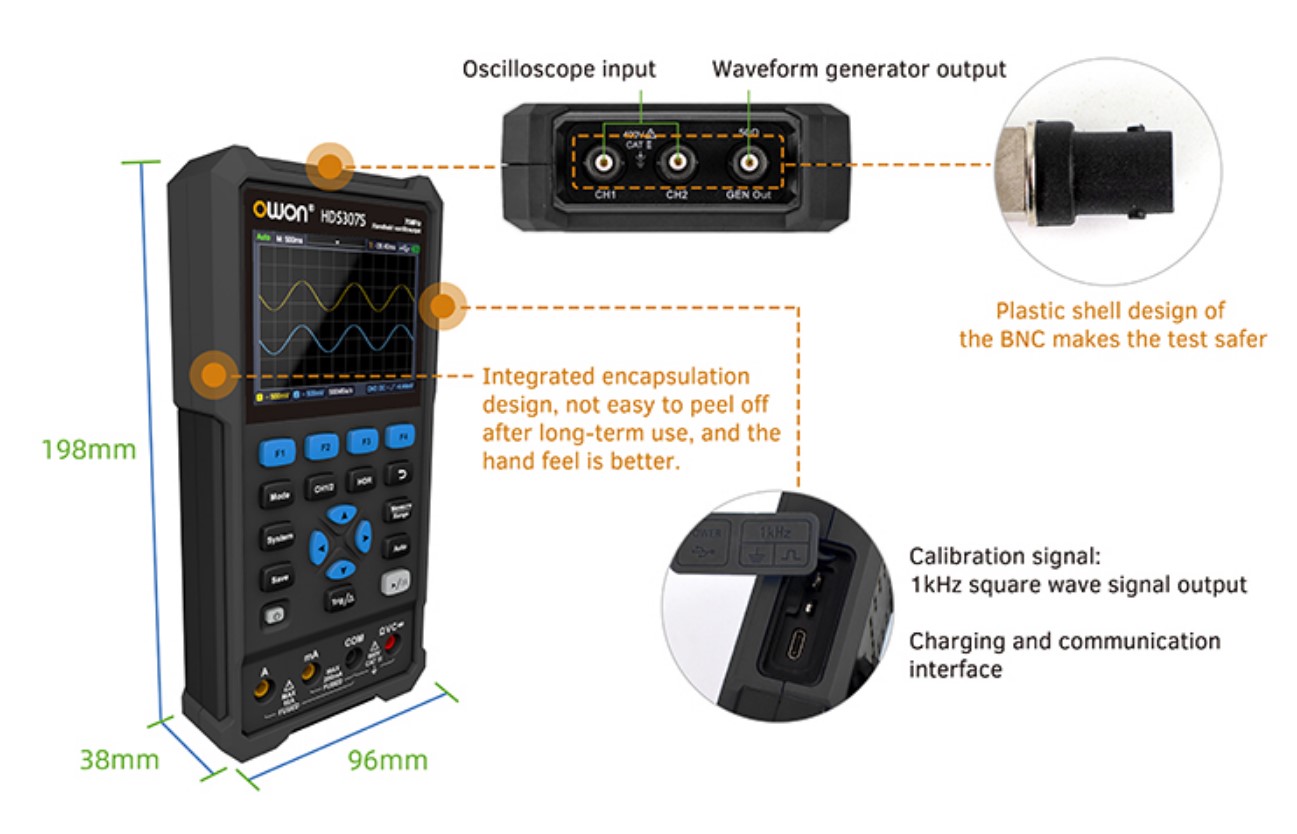

HDS300 Series Digital Oscilloscope

Features:

• Oscilloscope + multimeter + waveform generator, multifunction in one
• 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
• 18650 lithium battery
• USB Type-C interface, support power bank, support PC software connection
• Self-calibration function
• SCPI supported, facilitate secondary development

Instrument Transformers

Variety of functions in one

Oscilloscope

Max 10,000 wims/s waveform refresh rate

• Dual channels input
• Max 8k record length
• Cursor measurement function
• Multiple auto measurement functions
• XY function
• One-key auto set function, easy to detect and debug

Multimeter

20,000 counts, true RMS

• Voltage, current, resistance, diode, capacitance measuring and continuity test
• Auto range function, easy to detect and debug
• Max AC 750V, DC 1000V input voltage
• Independent input of multimeter and oscilloscope
• Reading hold function

Waveform Generator

Max 30MHz frequency output

• Output sine, square, ramp, pulse, and built-in special waveforms
• 0.1Hz frequency resolution
• 14-bit vertical resolution, 125MSa/s high sampling rate
• 8k waveform length
• Max 5Vpp output amplitude

High refresh, deep storage

Max 10.000 wfms/s refresh rate, 8k record length, easy to capture exceptional and low probability events.

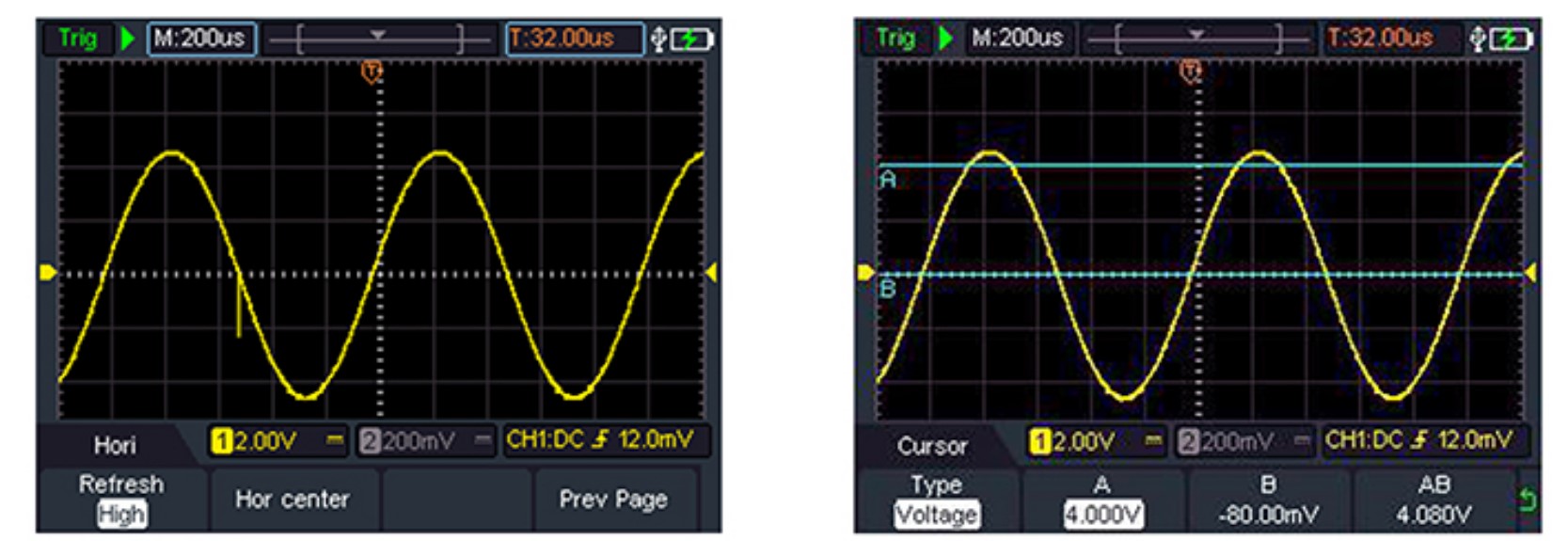

Cursor measurement function

Supports measuring the voltage difference between cursors (ΔV) and the time difference between cursors (ΔT).

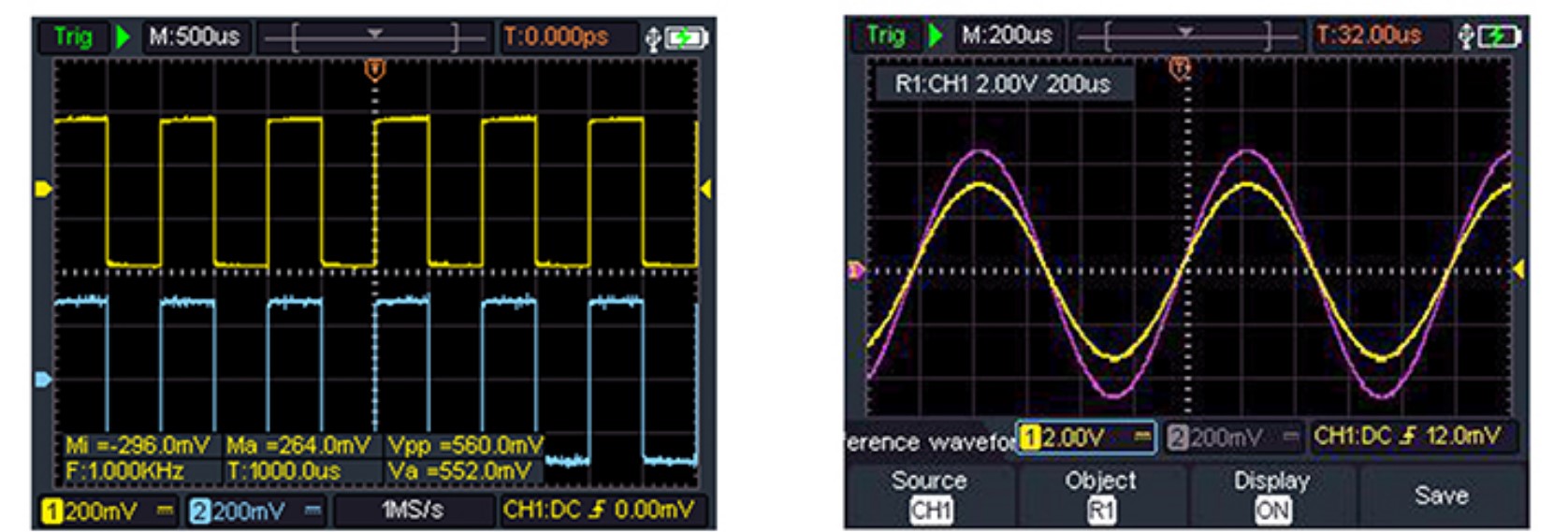

12 kinds of auto measurement

Frequency, Period, Amplitude, Max, Min, Mean, PK-PK, RMS, Rise Time, Fall Time, +Pulse Width, -Pulse Width.

Save function: Save 8 settings, 8 reference waveforms, 8 waveform images, 8 CSV waveform files. The reference waveform can be displayed on the same screen as the measured waveform, convenient for waveform comparison.

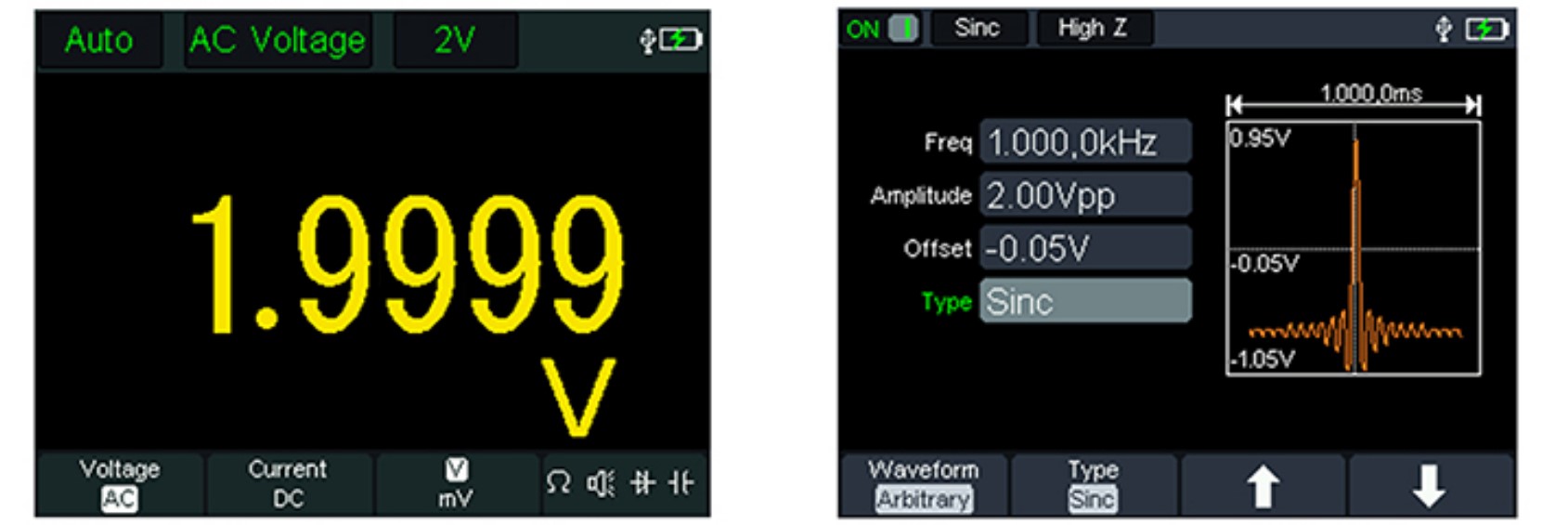

20,000 counts - Multimeter with True RMS

20,000 counts, high-precision professional multimeter, support relative value measurement. Support measuring voltage, current, resistance, capacitance, diode, and continuity test.

30MHz Waveform Generator

Output sine, square, ramp, pulse, and built-in 16 arbitrary waveform.

Package Includes:

• Quick Guide
• USB Cable
• Probe
• Probe Adjust
• Multimeter Leads

For more information, please see Specifications and User Manual
