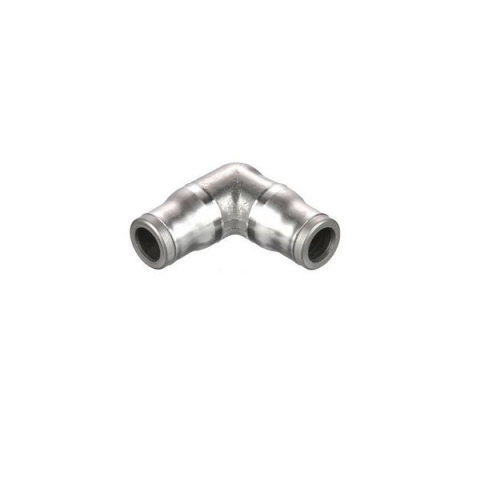

Legris 165PLS-6M Pneumatic Stainless Steel Elbow 6 mm

Being the world's leader in push-to-connect fitting technology Prestolok PLS stainless steel tube fittings extend Parker's expertise from pneumatics to the food industry. Fittings that come in contact with food must be corrosion resistant, non-toxic, non-absorbent and capable of being washed down and disinfected. Prestolok PLS fittings have a 316L stainless steel body and washer and a 303L stainless steel collet. The Prestolok PLS fitting uses nutriment grade materials and USDA NSF H1 grease conforming to FDA standards, permitting permanent contact with food. Prestolok PLS has a hygienic design aimed at reducing retention zones for safe and easy cleaning. Prestolok PLS fittings are fitted with an FKM O-ring protected by a backup washer. Prestolok PLS push in connectors reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. All components in Prestolok PLS are silicone free. All Prestolok PLS fittings are 100% leak tested and date coded to guarantee quality and traceability.

Use with grooved copper and stainless-steel tubing and the following Parflex Division tubing.

• Polyethylene
• Nylon
• Semi-rigid Nylon
• FEP
• Polyurethane 95 Durometer Shore A

Markets:

• Petrochemical
• Pulp and paper
• Food processing
• Pharmaceutical
• Medical
• Life science

Features and Benefits:

• Stainless Steel 303L collet
• Stainless Steel 316L body
• FKM Seals
• Stainless Steel 316L backup washer
• Corrosion, abrasion and chemical resistant fittings
• Resistant to industrial cleaning agents and detergents
• Nutriment grade materials and USDA NSF H1 grease conforms to FDA for contact with food
• Smooth surface design aimed at reducing retention zones
• Safe and easy cleaning
• Inch & metric sizes,  5/32" - 1/2" ,  4mm - 14mm
• NPT, UNF, BSPT, BSPP, Metric Threads
• Silicone free

Applications:

• Cleaning agents
• Wash down
• Sterilization
• Saline environments
• Food processing lines
• Chemical lines
• Vacuum
