Overview

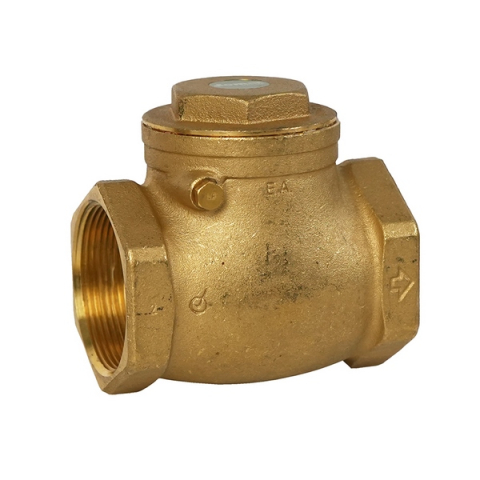

4" Lead Free Brass Horizontal Swing Check Valve
Features:
- Residential and commercial applications
- Wetted surfaces contain less than .25% lead content
Approvals:
- ANSI B1.20.1
- Truesdail Certified NSF/ANSI/CAN 61 & 372
Pressure/Temperature Rating:
- 200 WOG
- Temperature range: -10°F to 180°F
Install 5 pipe diameters minimum downstream from pump discharge or changes in direction to avoid flow turbulence. Flow straighteners may be required in extreme cases.
Note: On pump discharge, the preferred check valves are: inline, spring assisted, center-guided, lift checks.
Warning: Do Not Use For Reciprocating Air Compressor Service

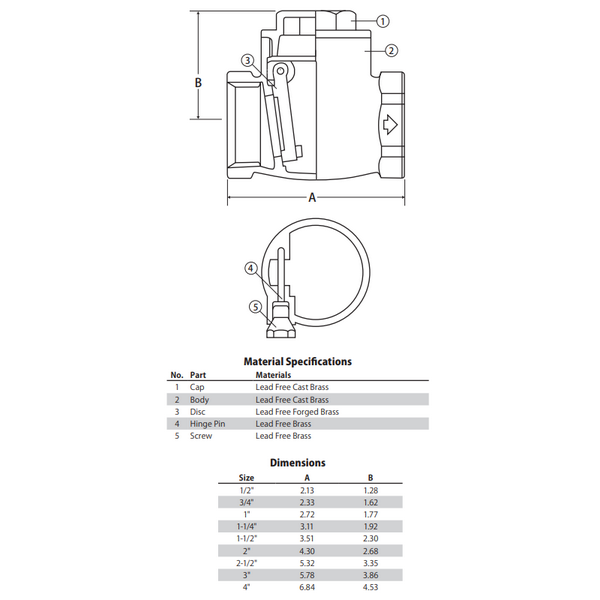

Material Specifications and Dimensions
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
