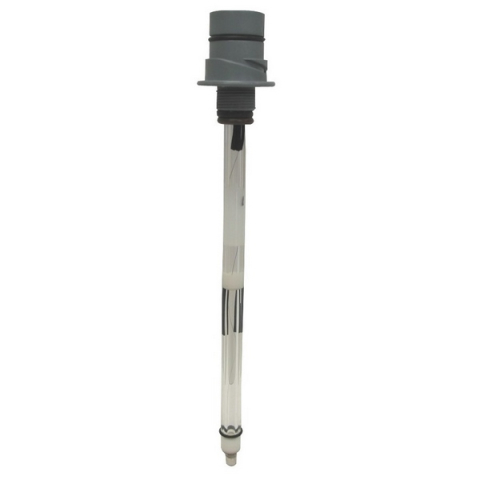

GF Piping Systems 3-2757-WTP-HDPE-PR Type 2757-WT Wet-Tap DryLoc ORP Electrode HDPE 10K

The type 2756-2757 Wet-Tap pH and ORP electrodes are general purpose sensors ideal for a wide range of applications where the installation and removal of the electrode can be performed without the need for system shutdown. The type 3719 pH/ORP Wet-Tap Assembly allows installation and removal of pH or ORP electrodes, even under process pressure, without the need for process shutdown during routine electrode maintenance and calibration. Process isolation is achieved during electrode retraction with two sets of double O-ring seals on a unique and compact retraction assembly; no separate valve is required.

The DryLoc connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2751 pH/ORP Smart Sensor Electronics. The robust polyarylsulphone (PAS) body and choice of bulb pH or ORP sensing elements allow a broad range of chemical compatibility for a wide range of applications. The Wet-Tap assembly unit can be mounted at any angle and can be used with the GF DryLoc® Wet-Tap pH and ORP electrodes.

Features:

• PTFE reference junction resists fouling
• Polyarylsulphone (PAS) body for broad range of chemical compatibility
• General purpose bulb pH glass suitable in a wide range of applications
• Patented DryLoc connector with gold plated contacts
• Electrode removal without process shutdown when installed in the GF 3719 pH/ORP Wet-Tap Assembly
• Memory chip enabled for access to a wide range of unique features when connected to the GF 2751 pH/ORP Smart Sensor Electronics
• Special design allows for installation at any angle, even inverted or horizontal

Applications:

• Aquatic Animal Life Support Systems
• Recreational Water Monitoring
• Water & Wastewater Treatment
• Effluent Monitoring
• Sanitization Systems
• Pool and Spa Control
