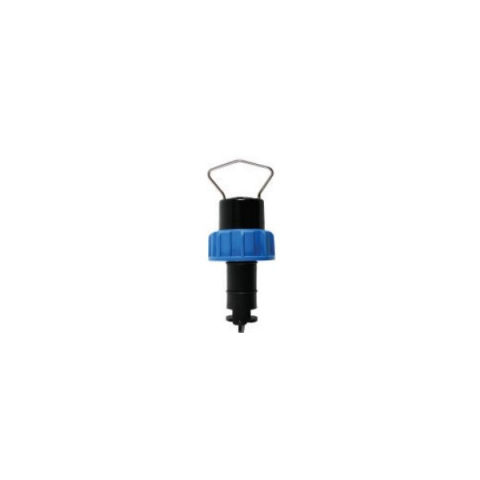

GF Piping Systems 3-2536-T0 Paddlewheel Flow Sensor, All Natural PVDF; 0.5 to 4"

Simple to install with time-honored reliable performance, Signet 2536 Rotor-X Paddlewheel Flow Sensors are highly repeatable, rugged sensors that off er exceptional value with little or no maintenance.

When choosing this style of sensor, the instrument can be mounted nearby on a pipe or wall or in a remote location up to 305 m (1000 ft) by connecting the sensor through a standard 3-8050-1 universal junction box. Standard cable length is 7.6 m (25 ft). Use Signet fittings for proper seating of the sensor into the process flow.

Features:

• Operating range 0.1 to 6 m/s (0.3 to 20 ft/s)
• Wide turndown ratio of 66:1
• Open-collector output
• Highly repeatable output
• Simple, economical design
• High resolution and noise immunity
• Chemically resistant materials

Applications:

• Pure Water Production
• Filtration Systems
• Chemical Production
• Liquid Delivery Systems
• Pump Protection
• Scrubber/Gas Stacks
• Gravity Feed Lines
• Not suitable for gas
