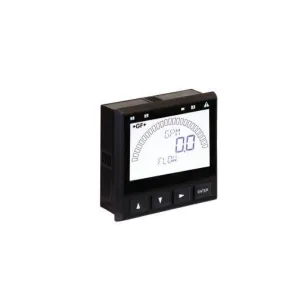

GF Piping Systems 3-9900-1 9900 Base Unit, Field Mount

The Signet 9900 Transmitter provides a single channel interface for many diff erent parameters including Flow, pH/ORP, Conductivity/Resistivity, Salinity, Pressure, Temperature, Level, Dissolved Oxygen, and other sensors that output a 4 to 20 mA signal. The 9900 can run on 12 to 32 VDC power (24 VDC nominal), and can also be loop powered with compatible sensors.

Features:

• Single Channel, Multi-Parameter, 4 to 20 mA, Open Collector, DC power
• Modbus Module supports RS485 Serial Modbus Communications
• Multiple sensor types supported with one instrument
• "Dial-type" digital bar graph
• Modules are field installable and replaceable anytime
• Optional Relay Module for addition of two drycontact relays
• Optional H COMM Module for two-way communication
• Modbus Module for connection to Serial, RS485, Modbus networks
• One 4 to 20 mA output in base unit. One additional 4 to 20 mA available with optional module
• Rear Enclosure Kits for panel, wall or pipe mounting
• Warning and Relay LED indicators for "at a glance" visibility
• Customizable features including digital label for custom identification
• Optional PC COMM confi guration tool for configuration at a PC

Applications:

• Wastewater Treatment
• Reverse Osmosis
• Deionization: - Ultra Pure Water; - Two Bed System; - Mixed Bed System
• Chemical Manufacturing/Addition
• Metal and Plastic Finishing
• Fume Scrubber
• Cooling Towers
• Media Filtration
