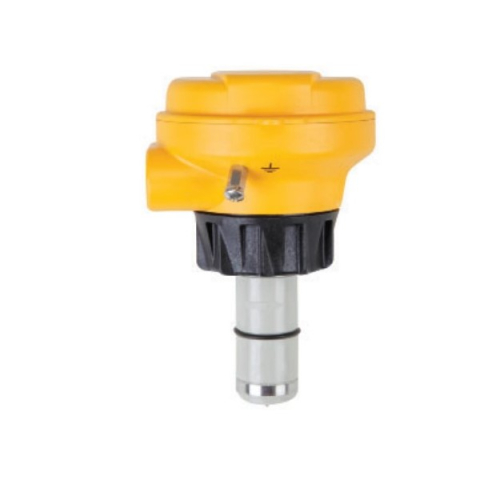

GF Piping Systems 3-2551-P0-12 Magmeter Flow Sensor, PP & SS, 0.5 to 4", 4 to 20 mA

The Signet 2551 Magmeter is an insertion style magnetic fl ow sensor that features no moving parts. The patented sensor design is available in corrosion-resistant materials to provide long-term reliability with minimal maintenance costs.

Utilizing the comprehensive line of Signet installation fittings, sensor alignment and insertion depth is automatic. These versatile, simple-to-install sensors deliver accurate fl ow measurement over a wide dynamic range in pipe sizes ranging from DN15 to DN900 (1.2 to 36 in.), satisfying the requirements of many diverse applications. An additional benefi t is the empty pipe detection which features a zero flow output when the sensors are not completely wetted.

Features:

• Patented Magmeter technology
• No moving parts
• Pipe Size - DN15 to DN100 (1/2 to 4 in.)
• Bi-directional flow
• Empty pipe detection
• Accurate measurement even in dirty liquids
• No pressure drop

Applications:

• Chemical Processing
• Water and Wastewater Monitoring
• Metal Recovery and Landfi ll Leachate
• Commercial Pools, Spas, and Aquariums
• HVAC
• Irrigation
• Scrubber Control
• Neutralization Systems
• Industrial Water Distribution
