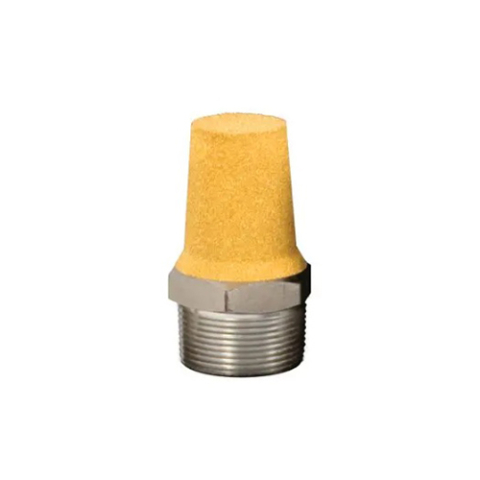

Exair 9083 3/8 NPT Sintered Bronze Muffler

EXAIR's low cost Sintered Bronze Muffler is easy to install in new and existing exhaust ports of valves, cylinders and other air powered equipment.

Sintered Bronze Muffler is capable of passing a certain volume of air with minimal back pressure restriction so it doesn't interfere with the operation of the cylinder or valve.

EXAIR Silencing Muffler help to reduce work area noise produced by air exhausting from cylinders, valves and other air powered equipment. Per OSHA Standard 1910.95 (a), worker must not be exposed to sound levels above 90 dBA for any eight hour shift of a 40 hour work week.

Silencing Muffler help plants meet this OSHA requirement by reducing the sound to safe levels below 90 dBA. This also eliminate harmful dead end pressures. Silencing Muffler has a high airflow capacity, with low back pressure.

Features:

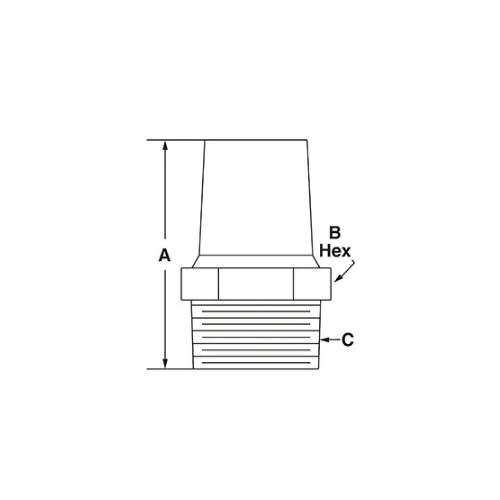

• Overall Length, in/mm  (A): 1.5 / 38
• Hex, in/mm (B): 0.69 / 18
• Thread Size (C): 3/8 MNPT
