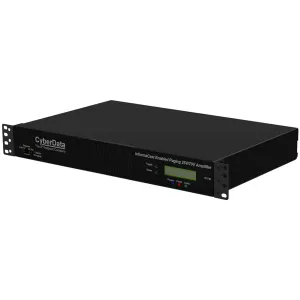

CyberData 011592 InformaCast Paging 25V/70V Amplifier 10/100 Mbps

The InformaCast^® Enabled Paging 25V/70V Amplifier is an analog/IP hybrid, cost-effective paging solution. It allows customers to use CyberData's or their existing 70V, 25V, constant voltage speakers, and/or CyberData multicast endpoints in a Singlewire InformaCast^® environment.

The InformaCast^® Enabled Paging 25V/70V Amplifier receives InformaCast^® audio messages and sends those to existing 70V or 25V analog speakers. More sound endpoints can be added with either additional 25V/70V Amplifiers and/or CyberData's multicast-supported line of products.

Features:

• Supports one analog zone with hundreds* of 25V or 70V speakers/horns with a single home run cable to the Amplifier.
• Compatible with Singlewire InformaCast^®, including support for downloading SIP credentials from InformaCast^®
• Relays InformaCast^® broadcasts to multicast endpoints
• Can page to unlimited endpoints that are enabled to receive multicast or Poly pages on any Poly channel
• Master analog volume adjustment via web interface or front panel LCD controls
• Calendar based bell scheduler
• Support for security code to prevent unwanted paging access
• Supports 100 DTMF controlled paging groups, that can transmit audio via multicast and the single analog channel
• Can receive pages directly from Poly phones as well as other devices that can send standard multicast
• Supports call-in stored message recording
• Paging prioritization
• Loud/Night Ringer function - second SIP extension
• Supports delayed pages, i.e. call buffering
• Supports multiple user accounts
• Fault sense input
• Line-in for background music
• Page to any Multicast enabled SIP Phone
• LCD display for monitoring device status, configuration and diagnostics
• Configurable alerts for amplifier temperature threshold, protection, and recovery modes.
• 19-inch rack mountable with removable rack ears
• TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
• HTTPS web based configuration
• Support for Cisco SRST resiliency
• Autoprovisioning via HTTPS, HTTP or TFTP
• Configurable event generation for device health and status monitoring
• 802.11q VLAN tagging

* Number of speakers supported will depend on the tap setting and the baseline voltage in your typical configuration.

For more information, please see Data Sheet
