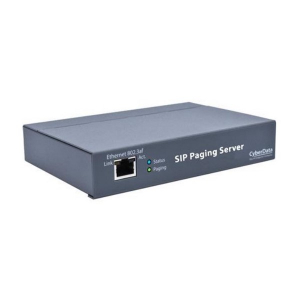

CyberData 011146 VoIP V3 SIP Paging Server with Bell Scheduler 10/100 Mbps

The SIP Paging Server with Bell Scheduler enables users, through a single SIP extension, to access up to 100 zones for paging and bell scheduling for VoIP phone systems. The SIP Paging Server has a built-in calendar-based bell scheduler that enables, through a secure web interface, scheduled bells and prerecorded messages to be sent to different multicast zones as well as to legacy analog paging systems.

Features:

• Over a GB of available space for user uploaded audio: up to 135 files for stored messages, bells, and other audio created by the user
• Calendar-based bell scheduler supporting multiple schedule files and time-based recurring event management
• Supports call-in stored message recording
• Voice prompting and password controlled zones
• Supports 100 paging groups accessed via DTMF
• Paging Prioritization
• Loud/Night Ringer function - second SIP extension
• Supports user-uploadable ring and alert tones, with the option to send a stored message with each of the 100 page groups
• Supports delayed pages, i.e. call buffering
• Support for security code to prevent unwanted SIP calls
• Supports multiple user accounts, with distinct log in credentials
• Can send multicast to all Poly channels
• Fault sense input
• Line-in for background music
• Line-out connector
• NTP-based internal clock
• Audio-controlled onboard relay for amplifier mute control
• Rack mountable
• TLS 1.2 and SRTP enhanced security for IP Endpoints in a local or cloud-based environment
• HTTP command interface
• HTTPS web based configuration
• Support for Cisco SRST resiliency
• Autoprovisioning via HTTPS, HTTP or TFTP
• Configurable event generation for device health and status monitoring

For more information, please see Data Sheet
