Brigade Electronics 7376 Elite Camera Extension HD Cable - 98ft (30m)

BE-H030 - Elite Camera Extension HD Cable - 98ft (30m)

Features:

• For use with shutter & non-shutter camera variants.
• Extension cable for Brigade's high definition Elite camera range.
• Backwards compatible with Brigade's CVBS Elite camera range.

Environmental Specifications:

• IP rating: With rubber boot fitted: IP68 and IP69K
• Operating temperature: -40°C to +105°C

Technical Specifications:

• Cable resistance: <0.2Ω/m
• Screening resistance: <0.2Ω/m
• Maximum DC operating voltage: 60V (DC)
• Insulation breakdown: max. 2kV (AC) for 3s
• Cable length: 98ft (30m)
• Cores type: 26AWG
• Screening type: Overall Cable: Aluminium Foil
• Video Wire: Braided Wire
• Outside insulator material: PVC
• Color: Black

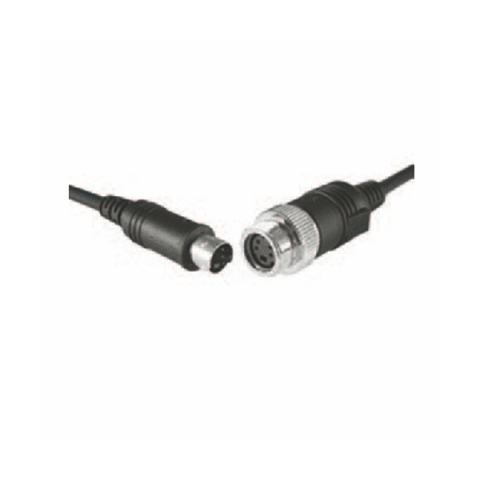

• Connection type: Brigade Elite Type Connector:
  • 1 x 4-pin Male,
  • 1 x 4-pin Female
• Minimum bending radius: 33mm
• Cable thickness: Ø5.5mm

Approved Standards:

• CE (REACH & RoHS)
• UKCA (REACH & RoHS)
• Elements of:
  • ISO 14572:2011,
  • ISO 6722:2011,
  • ISO 16750:2010
• WEEE
