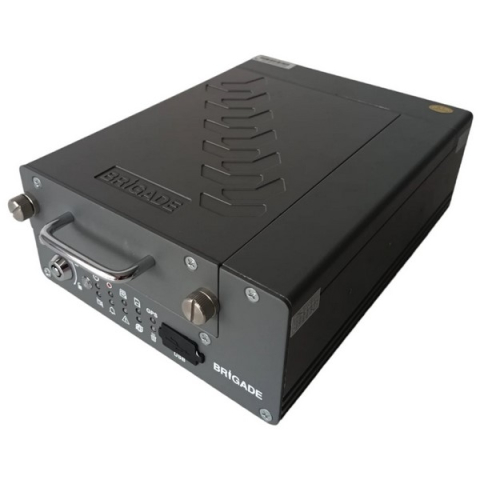

Brigade Electronics 6432 MDR-500 Mobile Digital Recorder - 4 Camera 2TB HDD SSD 32GB SD (GEN 2)

Why Invest in Mobile Digital Recorders (MDR)?

Protecting your driver. Providing your witness. Incidents involving vehicles can be time-consuming and costly to resolve. A lack of solid evidence often means that companies will automatically accept liability. However, these easy settlements have led to an increase in cases against operators who are considered soft targets. False claims, crash-for-cash, and shrinkage are now costing businesses millions each year. By capturing footage from vehicle-mounted cameras, Brigade's MDR digital video recorders offer the ideal solution, providing accurate eye-witness and irrefutable evidence in the event of an incident.

MDR range of digital video recorders offers high-quality recording functionality so that you can rest assured that you and your drivers are protected. Moreover, the use of mobile digital recorders helps in improving driver behavior through constant monitoring, thereby reducing the likelihood of incidents and enhancing overall road safety. They also help in reducing insurance premiums by providing clear evidence that can exonerate drivers from false accusations.

Investing in Brigade's mobile digital recorders means equipping your fleet with the best tools for safety, security, and efficiency. With these systems in place, you can mitigate risks, avoid fraudulent claims, and ensure that your operations run smoothly and cost-effectively. In a world where every second and every decision counts, having a reliable mobile digital recorder is not just an advantage - it is a necessity for any business relying on commercial vehicle video recording.

• Provides protection - Provides protection for drivers who may be wrongly accused
• Driver Best Practice - Encourages driver best practice, so less vehicle damage and accidents
• Vandalism deterrent - A good deterrent for theft and vandalism
• Peace of mind - Peace of mind for passengers and drivers

Features:

• MDR-Dashboard 5.0 (full-featured software) has the following functions: Real-time preview, Multi-vehicle monitoring, playback of server and local video data, downloading data, evidence management, auto-download scheduling, user data management and an alarm centre.
• On-screen Display Graphical User Interface
• MDR control using USB Mouse, IR Remote Control and PC via browser (Ethernet)
• MDR-Player 5.0 (portable) is able to view clippings and directories
• Internal G-Sensor and Built-in Buzzer
• GPS for location, monitoring and tracking on playback
• Mirror Recording onto SD card
• Lockable and removable Mobile Caddy Unit (MCU) with SSD
• Caddy Unit directly pluggable to PC via USB-B port (USB 3.0)
• Various Pre and Post Recording Settings
• Recording Modes: Normal, Alarm and Timer (all watermarked)
• Multi-level GDPR compliant password protected access (Administrator; User)
• 8x Trigger Inputs, 2x Trigger Outputs and 1x 12V Power Output
• Built-in SSD Heater and Diagnostic LED Status Panel
• USB-A port on front panel for upgrades, configuration and exporting data

Environmental Specifications:

• Shock Rating: 51G
• Vibration Rating: 3.1G
• Operating Relative Humidity: 10% to 90%
• IP Rating: IP30
• Operating Temperature: -40° to +70°C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 8.5 - 32 Vdc
• Max Current Consumption: ≤5A at 12Vdc
• Max Inrush Current: 5.8A at 12Vdc and 2.3A at 24Vdc
• Power Consumption: ≤60 Watts at 12Vdc
• TV System: PAL/NTSC/AHD
• Video Input:
  • 4x Select Connectors (Male)
  • 2 Channels for IP cameras via Ethernet Connector (requires PON switch)
• Audio Input: 4x Analog & 2x IP Camera Microphones
• Video Output: 1x Select Connector (Female)
• Audio Output: 1x Channel
• Video Input/Output: 1.0 Vp-p / 75Ω
• Video Compression: H.264
• Audio Compression: ADPCM
• Installation Direction: Internal anti-vibration mount allows any mounting direction.
• Housing Material: Extruded Aluminium, Gunmetal Gray
• Power-up Time to Rec.: 50 seconds
• Display Split: Single, Quad or 9-Split
• Image Frame Rates: 1-25 FPS (PAL); 1-30 FPS (NTSC&AHD);
• Image Resolution:
  • PAL: WD1 (960x576), D1 (704x576), WHD1 (960x288), HD1 (704x288), WCIF (480x288), CIF (352x288)
  • NTSC: WD1 (960x480), D1 (704x480), WHD1 (960x240), HD1 (704x240), WCIF (480x240), CIF (352x240)
  • AHD: HD (1280x720), FULL HD (1920x1080)
• Recording Quality Setting: 1 to 8 (1 is the highest)
• Recording Duration (2TB):
  • Minimum 569 hours (Quality 1; Res D1; 25/30fps)
    • 190 hours (Quality 1; Res 720p;25/30fps)
  • Maximum 74304 hours (Quality 8; Res CIF; 1fps)
    • 27090 hours (Quality 8; Res 720p; 1fps)
• Storage: 2TB 2.5" HDD / SSD, 32GB SD card

Approved Standards:

• CE - (EN 61000-6-3:2007 + A1:2011 + AC:2012; EN 61000-6-1:2007) (EN 61000-6-4:2007 + A1:2011; EN 61000-6-2:2005)
• FCC - (47 CFR Part 15 Subpart B)
• ‘E' Mark - (ECE Regulation 10 Rev 05)
• IC - (ICES-003:2016 (Issue 6))
• RoHS2, WEEE

Package Contents:

• 1 x MDR-504-2-G2-SSD Mobile Digital Recorder
• 1 x MDR-MOUSE-01 MDR Wired Mouse
• 1 x MDR-IO-01 Input / Output Cable
• 1 x MDR-PWR-01 Power Cable
• 1 x MDR-ANT-GPS-02 GPS Antenna
• 1 x MDR-USB-B-02 USB A to B Cable (3.0)
• 1 x MDR-KEY-01 Security Key
• 1 x MDR-BKT-01 Brackets
• 1 x MDR-BKT-FIX-01 Bracket Fixings
• 1 x MDR-500-IG Installation Guide
• 1 x MDR-500-CD Installation CD
