Brigade Electronics 6124 Camera Monitor System Select Single 7" Monitor with AHD Eyeball Camera Monitor System for Rigid Vehicles

SELECT HD Camera Monitor Kit VBV-770H-3001: Single AHD eyeball camera monitor system for rigid vehicles

Suitable for rigid vehicles:

• Van
• Box Truck
• Road Sweeper

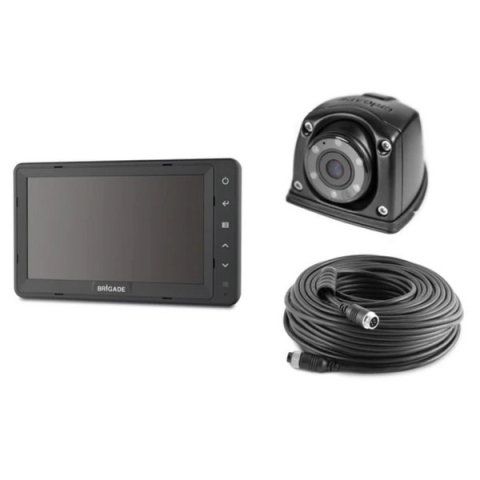

Kit includes:

• VBV-770HM: 7″ AHD monitor (Part Number 5611)
• VBV-3100C: AHD eyeball camera (Part Number 5454) / VBV-3001C: AHD eyeball camera (Part Number 5455)
• VBV-H420: AHD 20m cable (Part Number 5513)

VBV-770HM: 7″ AHD monitor (Part Number 5611):

Features:

• AHD and CVBS compatible with automatic signal detection (see list of all supported TV systems)
• High-definition, high-contrast, wide viewing angle digital LCD with LED backlight
• Low reflection TFT LCD (Anti Glare Coating)
• Integrated light sensor for backlight dimming
• Illuminated touch keypad
• Keypad disable/lock via OSD menu
• Integrated large speaker
• 10 x On Screen Display (OSD) languages: (English, French, German, Spanish, Turkish, Italian, Dutch, Portuguese, Russian, Polish)
• Configurable trigger off delay (0-20 sec.)
• Configurable trigger input functions
• Configurable auto scan delay (0-20 sec.)
• 2 variations of digital on screen markers
• Compatible with Remote Control VBV-7X0DM-RC
• 5-pin shutter camera support via adapter cable AC-035

Picture Quality:

• LED backlighting (gives 20,000 hours life)
• Anti-glare screen
• Resolution: 1024 x 600
• Contrast ratio: 700:1
• Brightness: 500cd/m2
• Viewing angles: Side 85° x Top 85° x Bottom 85°

Power:

• Power consumption: 10 Watts
• Current: 0.8 Amps

Environmental Specifications:

• Shock Rating: 51 G (All 3 axis - 6 directions)
• Vibration Rating: 3 G (All 3 axis each 32hr random)
• Connector IP Rating: IP40
• Monitor IP Rating: IP30
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C

Approved Standards:

• CE - (Electromagnetic Compatibility Directive 2014/30/EU, RoHS)
• UKCA (Electromagnetic Compatibility Regulations S.I. 2016/1091, RoHS)
• ‘E' Mark - (UNECE Regulation 10 Rev 06)
• FCC - (47 CFR Part 15 Subpart B)
• IC - (ICES-003:2016, Issue 7 Class B)
• Elements of ISO 16750
• REACH
• WEEE
