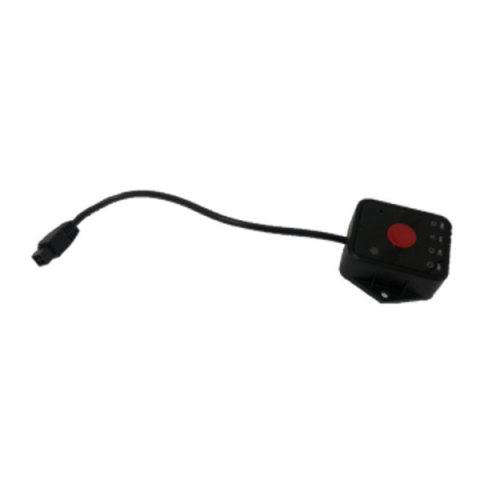

Brigade Electronics 6016 Panic Button & Status Panel - 4m Cable for Mobile Digital Recorders

MDR-RP-02 - Mobile Digital Recorder Panic Button & Status Panel - 4m Cable

Features:

• Red panic button to trigger alarms, sensor or snapshots
• LEDs for MDR information such as recording indicator, HDD recording status and presence of HDD
• Built-in light sensor enables 2 levels of automatic LED brightness adjustment to help driver in low light situations
• Built-in buzzer for audible alerts if there is an error in communication between Remote Panel and MDR

Environmental Specifications:

• Operating Temperature: -40° to +70 °C
• Storage Temperature: -40° to +85°C

Technical Specifications:

• Operating Voltage: 5 Vdc
• Power Consumption: 0.4 Watts at 5 Vdc
• Number of LED Indicators: 4
• Housing Material: ABS+PC
• Finish: Black
• Communication: RS485
• Cable Length: 211mm ± 10mm
• Extension Cable Length: 4 metres
• Cable Thickness:
  • Remote Panel Cable: 24 AWG
  • Transfer Cable: 24 AWG

Approved Standards:

• CE (EN 55032:2015/AC:2016 and EN 55035:2017)
• FCC (CFR 47 Part 15 Subpart B Class B)
• RoHS2
• WEEE

Package Contents:

• 1 x MDR-RP-P MDR Panic Button & Status Panel (Body Only)
• 1 x MDR-04RPC MDR Panic Button & Status Panel - 4m Cable
