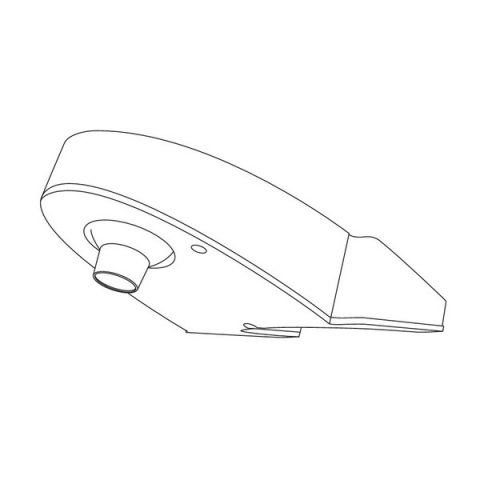

Brigade Electronics 4395A Select Van Camera Kit (Mirror Image) (PAL)

VBV-070C: Select Van Camera Kit (Mirror Image) (PAL)

Features:

• TV System - PAL
• Picture Elements - 512(h) x 582(v)
• Image Size - 1/3 inch
• Synchronization - Internal
• Horizontal resolution - 420 tv lines
• Required Illumination - 0.0 LUX minimum/F1.2
• Power Supply - 12Vdc
• Power Consumption - 2.1w( at 14Vdc)
• Current consumption - 150mA
• Lens angle -  113°(D) 86°(H) 67°(V)
• Operation temperature -20°C to +60°C / -68°F to 140°F
• Weight - 83g / 2.9oz
• Dimensions - (W x H x D) 37 x 37 x 46.5mm (Camera) / 1.4 x 1.4 x 1.8 in

Kit includes:

• 1 x Top housing
• 1 x Rear Housing
• 1 x Housing Screws
• 1 x Retaining Bracket Rubber Ring
• 1 x Retaining Bracket
• 1 x Retaining Bracket Separator Ring
• 1 x Retaining Bracket Screws
• 1 x Drilling Template
• 1 x Foam Gasket
• 1 x Fixing Pack
• 1 x Insert User + Inst Guide
