Azzota BHY-205001 Evacuable Pellet Die Set 13 mm FTIR / KBr

Azzota® Evacuable Pellet Die Set, 13 mm, FTIR / KBr

The AZZOTA Evacuable FTIR / KBr Pellet Dies are particularly well used to compact powdered samples into high-quality discs or briquettes for FTIR spectroscopic analysis (USLP and ASTM methods). The most commonly used die is 13 mm in diameter.

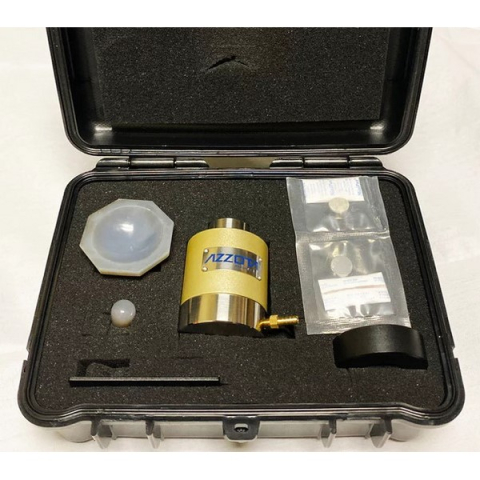

Evacuable pellet die set (BHY-205001) used to form 13 mm sample disks. Set includes valuable FTIR Evacuable Pellet Dies / KBr Pellet Dies (BHY-205002), two 13 mm polished steel pellets (BHY-205003), 50mm Agate Mortar and Pestle (BHY-205004) and Magnetic Film Holder for 13-mm pellets and film samples (BHY-205005)

Features

• Ideal for IR sample preparation.
• High quality KBr pellets.
• The idea for pressing FTIR / KBr disks for IR analysis.
• Compatible with all standard laboratory presses using stand-alone dies.
• Vacuum hose attachment enables a vacuum pump to be hooked up to the die before and during pressing to withdraw air and moisture from the sample.
• Maximum load up to 600 bars (8,700 psi).
• All dies are made of hardened stainless steel, designed for ease of disassembly and maintenance, and can be easily cleaned.
• Each die consists of a 13 mm cylinder (the surfaces that come in contact with the samples are mirror-polished), a base with a vacuum outlet, a base O-ring, a plunger with an O-ring, two mirror-polished anvils, and an ejector.
