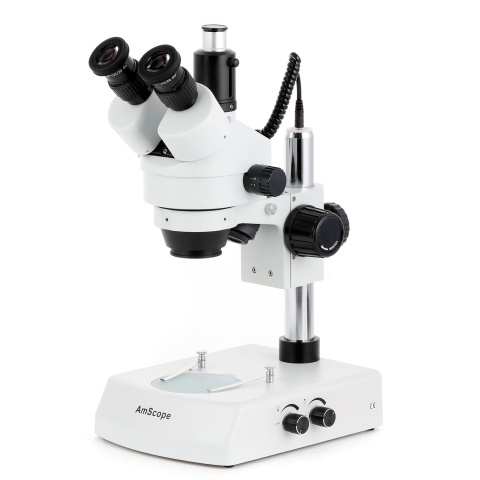

AmScope SM-2TP-HD2 SM-2 Series Simul-Focal Zoom Trinocular Stereo Microscope 7X-45X Magnification w/ Dual Halogen Lights and 2MP HDMI CMOS C-Mount Camera

Key Features:

• 7X-45X zoom magnification using high-quality Greenough stereoscopic objective lenses.
• Super widefield optical system offering crystal clear images
• Top and bottom lights with separate dimmers provide incident and transmitted illumination for viewing biological specimens and industrial materials alike
• Heavy-duty pillar stand with metal framework combines all of the functionality needed in a compact, stable form
• The simul-focal trinocular photo-port provides a dedicated mount for a camera, and can be used simultaneously with both eyepieces.
• Includes a 1080p/2MP multi-function camera with built-in recording that can stream live video over HDMI and connect to a computer using USB

The SM-2T is a turnkey trinocular stereo microscope solution for biological and industrial fields. Using our workhorse SM745 head, it provides remarkable optical quality with a wide zoom magnification range. The dual-illumination base provides solid support, and both transmitted and reflected lighting for observing a range of objects, from biological cultures to PCBs. This trinocular model has an additional port for mounting a camera, which is simul-focal so it can be used simultaneously with both eyepieces.

Optics

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles.

Ocular Adjustment

Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.

Simul-focal Trinocular Port

The simul-focal optics in this microscope allow the trinocular port to be used simultaneously with both eyepieces. This means a camera can stream live images from the microscope while you continue to work with full stereoscopic vision. This is accomplished by sharing the left objective lens with the left ocular and the photo-port. This microscope uses our CX series trinocular port, so it can be easily replaced with optional C-mount ports to match specific cameras.

Dual-Illumination Stand

The dual-illumination stand provides a turnkey solution for biological and industrial applications. The pillar-based support system offers flexibility with its ability to quickly adjust height and lateral position. The microscope can be easily set and rotated in the mounting collar, and locked in place once adjusted. Large, symmetrical focus knobs provide the precision control needed, with adjustable tension for light or heavy loads as well as comfort.

Overhead and sub-stage halogen lighting allows you to work with opaque and translucent objects. The top light is mounted behind the head to provide offset light, and can be tilted for varied effect. This is useful for topological examination, such as with circuit boards and biological cultures. Thin tissue specimens, gemstones, and other translucent materials will benefit from the sub-stage transmitted lighting. A frosted glass stage-plate is provided to diffuse the light for more even back-lighting.

Digital Imaging

This microscope comes with a 1080p multifunction camera which can be used to record directly while streaming images to a monitor or TV, or with a computer. Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps, while recording directly to a Secure Digital card at 25fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure. Optionally, a companion HDMI monitor can be attached directly to the camera, creating a self-sufficient turnkey system.

As an alternative solution, connect the camera to a computer via USB for remote software control. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Packing List:

• One trinocular stereo microscope head
• One photo port
• 10X eyepiece(s)
• One pair eye-guards
• One pillar stand
• One focusing block
• One top-light
• One pair stage clips
• One glass stage plate
• One black/white stage plate
• One power cord
• Two light bulbs
• One hex wrench
• One dust cover
• One HD Digital Camera
• One USB Mouse
• One USB Cable
• One HDMI Cable
• One SD Card
• One Power Adapter
• One CD with Software and User's Instructions
