AmScope MU130 1.3MP USB 2.0 Color CMOS C-Mount Microscope Camera with Reduction Lens
Click to zoom
Factory Warranty
Warranty
Condition
Condition: new
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

AmScope MU Series 1.3MP USB 2.0 Color CMOS C-Mount Microscope Camera with Reduction Lens

  • 1.3MP USB digital camera captures still images and streams live videos on your computer
  • User-friendly software is compatible with Windows 8.1/10/11, Mac OS X, and Linux
  • Sophisticated software for Windows offers editing, processing and advanced features including Stitching, EDF and measurement functions
  • Linux and Mac software records video and still images, with controls for exposure and color
  • Fits four mounting sizes: 23mm, 30mm, 30.5mm, and C-mount (two mounting adapters included)

This 1.3MP digital camera for microscopes is designed to capture still images, as well as stream and record live video on Windows, Mac, and Linux computers. The user-friendly, stand-alone software for Windows XP/Vista/7/8/10 offers advanced features, including stitching, EDF (Extended Depth of Focus), video-recording, and measurement functions. It allows you to make notes, shapes, watermarks, and precise measurements with ease. Preview and capture resolutions can be set independently, allowing you to simultaneously view high-speed, low-resolution live video, while capturing higher-resolution images or video. The software for Linux and Mac allow you to capture still images and record video, as well as control color and exposure.

Designed using the C-mount standard, the camera with the included reduction lens and two sizing-adapters can fit 23mm, 30mm, and 30.5mm photo ports and ocular ports. The reduction lens increases the field-of-view to better match what's seen through the eyepieces. Using a standard USB 2.0 connection, the camera is easy to install. Drawing power from the USB connection, no additional connections are needed. The included calibration slide allows you to take acurate measurements in the software by creating baseline measurements at multiple magnifications.

Sensor

SensorSensor TypeShutterBinningSensitivity
?
MT9M111CMOSRolling Shutter1x1
2x2
4x4		1.0V/lux-sec
Optical FormatSensor SizePixelsPixel SizeAspect Ratio
1/3"4.60mm x 3.70mm1.3M3.6µm x 3.6µm5:4

Camera

Spectral Range
(IR Cut Filter)		Frame Rate(s)
(Maximum)		Exposure TimeConnectivity
380nm - 650nm15fps @ 1280x1024
26fps @ 640x512
50fps @ 320x256		0.14ms to 2sUSB 2.0
Lens-mountCompensating LensPowerCompatibility
C-mount0.37X5V over USBWindows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Operating TemperatureStorage TemperatureOperating HumidityStorage Humidity
-10°C~50°C-20°C~60°C30~80%RH10~60%RH

Software

OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0+ port for maximum speed
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

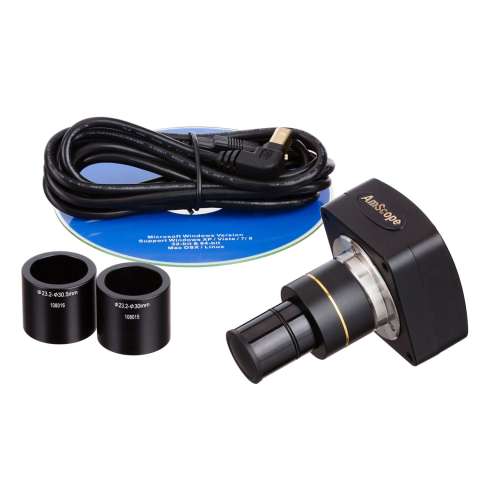

Packing List:

  • One 1.3MP Digital Camera
  • 0.37X Reduction Lens
  • One 6' (1.8m) USB Cable
  • Two Adapters: 30mm and 30.5mm
  • One CD with Software and User's Instructions
