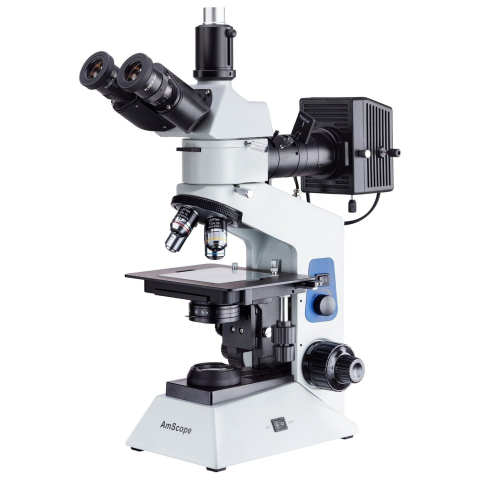

AmScope ME580T-PZ-2L ME508 Series Compact Trinocular Metallurgical Compound Microscope Dual Illumination Polarized Light w/Optional Digital Camera

AmScope ME508 Series Compact Trinocular Metallurgical Upright Compound Microscope 40X-500X Magnification Dual-Illumination Polarized Light

• 40X to 500X magnification using 10X eyepieces and a combination of metallurgical and biological objective lenses for five distinct settings.
• A compact multi-purpose microscope with dual illumination and simple polarization for observation of metals, plastics, and biological samples.
• Use a combination of reflected light and simple polarization to bring out complex details such as stress in metal and other materials.
• Transmitted illumination can be used with metallurgical and biological objective lenses to view translucent materials and biological specimen slides
• The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.

This is a feature-packed, economical metallurgical microscope with an upright design, and both trasmitted and incident illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. The Siedentopf head with dual diopters and high-eyepoint eyepieces provides a comfortable and adjustable viewing platform. There is also a dedicated photo port for simultaneous viewing and imaging.

Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces and a combination of metallurgical and biological objective lenses, the magnification range spans from 40X to 500X with five unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

An advanced metallurgical microscopy system with incident and transmitted illumination

Polarized lighting for structural analysis

Includes a range of filters for lighting manipulation

5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives

4X, 10X, 40X achromat objectives

10X plan eyepieces for flat-field viewing

Co-axial coarse & fine focusing system

30 degree inclined 360 degree rotatable trinocular head

Coaxial coarse and fine focusing

Dual focusing control knobs

Focusing tension control mechanism

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Packing List:

One microscope with trinocular Siedentopf head

One photo tube

Three LM Plan achromatic objectives (5X, 10X, 50X)

Three achromatic objectives (4X, 10X, 40X)

One pair 10X eyepieces

One sub-stage condenser

One Halogen episcopic illuminator module

One 6V 30W G4 halogen bulb

One 6V 20W G4 halogen bulb

Six filters (polarizer, analyzer, green, blue, yellow, diffuser)

One AC cord

One pack of lens tissues

One dust cover

One tension wrench
