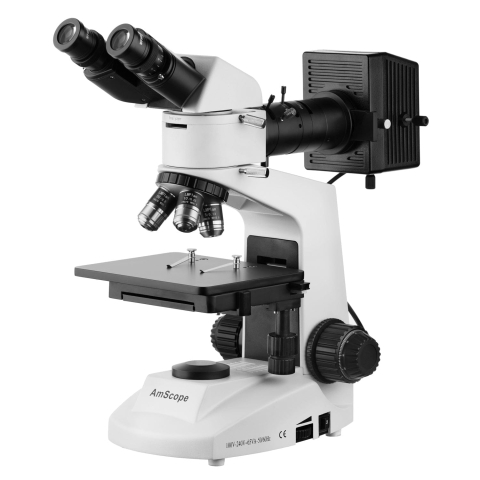

AmScope ME320B-PZ ME320 Series Metallurgical Binocular Compound Microscope 50X-500X Magnification with Polarizing Features

AmScope ME320 Series Metallurgical Binocular Compound Microscope 50X-500X Magnification with Polarizing Features

• 50X-500X metallurgical microscope with EPI illumination
• Plan Achromatic optics provides sharp clear images
• Three metallurgical and polarizing magnification settings
• Powerful 30W EPI (top) halogen illumination
• Binocular port allows to add photographic or video capability

This polarizing metallurgical microscope is designed for metallurgical microscopy applications. It comes with three Plan Achromatic objectives, two pairs of widefield eyepieces, a 30 degree inclined 360 degree swiveling binocular head, and a 90V-240V wide band power supply illumination system that can be used anywhere on the globe. The microscope offers three magnification settings, 50X,100X & 500X, and polarizing features. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality control applications.

Features:

• A professional grade metallurgical metallographic microscope with polarizing features for metallurgical applications!
• EPI-illumination reflected light microscopy system
• Fully coated optical system with high resolution
• 30 degree inclined 360 degree rotatable sliding binocular head
• Three levels of metallurgical magnification settings, 50X,100X & 500X
• Three polarizing magnification powers, 50X,100X & 500X
• Three DIN standard Plan objectives included
• Two sets of widefield eyepiece included
• Intensity-variable halogen EPI-illumination
• Polarizing kit included
• Two filter frames and one blue EPI-illumination filter included
• 7-0"x 5-3/4" (180x145mm) extremely large mechanical stage with stain resistant finish
• Low position stage traveling controls
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical parts
• Coaxial coarse and fine focusing
• Dual side focusing controls
• Focusing tension control mechanism
• 30 degree inclined 360 degree rotatable binocular head
• Adjustable interpupillary distance
• Adjustable diopters on both eye tubes
• Solid metal frame construction with stain resistant enamel finish
• Dust cover included
• Manufactured under ISO 9001 quality control standards
• Excellent five (5) year factory warranty

Specifications:

• Nosepiece: triple
• Focusing Range: 1-9/16" (40mm)
• Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
• Mechanical Tube Length: 6-5/16" (160mm)
• Head: 30 degree inclined binocular
• Camera/Video Binocular Port: 23mm universal/standard photo tube
• Eyepieces: WF10X (18mm Field of View)
• Objectives: Plan Achromatic 5X (0.1 NA), 10X (0.25 NA), 50X (Spring, 0.65 NA)
• Stage Dimensions: 7-0"x 5-3/4" (180x145mm)
• Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
• Vernier Division: 0.004" (0.1mm)
• Illumination: halogen lamp, 6V/20W
• Power Supply: 90V-240V wide band, CE certified
• Shipping Weight: 25 lbs

Packing List:

• One Binocular Compensation-Free Compound Microscope Head
• One Microscope Body with Frame, Base and 90V-240V Wide Band EPI Illumination System
• One Pair of Widefield Eyepieces: WF10X
• Three Plan Achromatic Metallurgical Objectives, 5X, 10X 50X
• One Set of Polarizing Kit
• Two Filter Frames and One Blue Filter
• One Power Cord
• Dust Cover
• User's Manual Download
