AmScope MU800-CK MU Series 8.0MP USB 2.0 Color CMOS C-Mount Microscope Camera w/ Reduction Lens and Calibration Slide

  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
AmScope MU800-CK MU Series 8.0MP USB 2.0 Color CMOS C-Mount Microscope Camera w/ Reduction Lens and Calibration Slide
Click to zoom
  • Brand:AmScope
  • Part #:MU800-CK
  • Model #:MU Series
Factory Warranty
Warranty
Condition
Condition: new
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

AmScope MU Series 8.0MP USB 2.0 Color CMOS C-Mount Microscope Camera with Reduction Lens and Calibration Slide

Features:

  • 8MP USB digital camera captures still images and streams live videos on your computer
  • Includes calibration slide for establishing measurement baselines
  • Sophisticated software for Windows 8.1/10/11 offers editing, processing and advanced features including Stitching, EDF and measurement functions
  • Mac software has basic functions to record video and still images, with controls for exposure and color
  • Fits four mounting sizes: 23mm, 30mm, 30.5mm, and C-mount (two mounting adapters included)

This 8MP digital camera for microscopes is designed to capture still images, as well as stream and record live video on Windows and Mac computers. The user-friendly, stand-alone software for Windows XP/Vista/7/8/10 offers advanced features, including stitching, EDF (Extended Depth of Focus), video-recording, and measurement functions. It allows you to make notes, shapes, watermarks, and precise measurements with ease. Preview and capture resolutions can be set independently, allowing you to simultaneously view high-speed, low-resolution live video, while capturing higher-resolution images or video. The software for Mac allows you to capture still images and record video, as well as control color and exposure.

Designed using the C-mount standard, the camera with the included reduction lens and two sizing-adapters can fit 23mm, 30mm, and 30.5mm photo ports and ocular ports. The reduction lens increases the field-of-view to better match what's seen through the eyepieces. Using a standard USB 2.0 connection, the camera is easy to install. Drawing power from the USB connection, no additional connections are needed.

Camera Specifications:

  • Sensor: Aptina Special
  • Sensor Size: 1/2.5" (5.451mm(H) x 4.088mm(V), diagonal 6.813mm)
  • Resolution: 3264x2448 (approx.8,000,000 pixels)
  • Reduction Lens: 0.5X
  • Pixel Size: 1.67μm x 1.67μm
  • G Sensitivity: 0.31v / lux-sec (550nm)
  • Frame Rate: 27fps @800x600, 8fps @1600x1200, 1.9fps @3264x2448
  • Exposure: 0.38~2000ms, ROI Auto & Manual
  • Scan Mode: Progressive
  • Dynamic Range: 65.2dB
  • A/D Converter: 12-bit Parallel, 8-bit R.G.B to computer
  • SN Ratio: 34dB
  • Spectral Range: 380-650nm (with IR-filter)
  • Binning: 1x1, 2x2, 4x4
  • White balance: ROI White Balance/ Manual Temp-Tint Adjustment
  • Color Rendering Technique: Ultra Fine Color Engine
  • Capture/Control API: Native C/C++, C#, Directshow, Twain, Labview
  • Recording System: Still Picture and Movie
  • Cooling System: Natural
  • Operating Temperature: -10°C~50°C
  • Storage Temperature: -20°C~60°C
  • Operating Humidity: 30~80%RH
  • Storage Humidity: 10~60%RH
  • Power Supply: DC 5V over USB Port

    • Software Features:

  • Operating System: Windows XP/Vista/7/8/10 (32 & 64 bit), Mac OS X (currently not compatible with Linux)
  • PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
  • Advanced software for Windows:
    - offers Stitching, EDF, video recording and measurement functions
    - conducts measurements for lengths, angles, arcs, areas and etc.
    - gives your computer screens the same field of view as your microscope's eyepiece
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - edit and process microscopy images in a manner similar to PhotoShop
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances

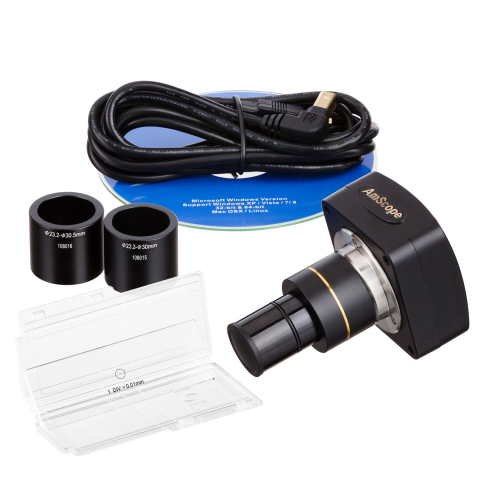

    • Packing List:

  • 8MP digital camera
  • 0.5X reduction lens
  • Calibration slide
  • 6' (1.8m) USB cable
  • 30mm and 30.5mm adapters
  • CD with software and user's instructions
  • Shipping weight: 2 lbs

    • ⚠️ Attention CA Residents: Prop 65 Warning
