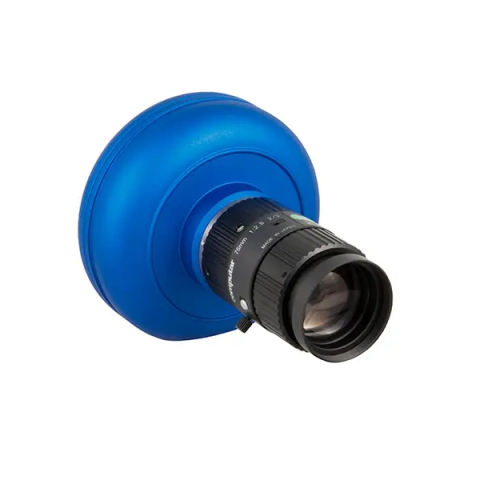

PCE Instruments PCE-HSC 1660 High-Speed Slow Motion Camera

The high-speed camera PCE-HSC 1660 is suitable for simple slow motion recordings in industry and research. With the help of this camera the filming can take place with the refresh rate of 2420 images per second. This high-speed camera is distinguished by its compact design and ease of use. It is connected to the PC or laptop via USB 3.0. The supplied software recognizes the SloMo camera immediately and the recordings can be created immediately after the driver installation. A CMOS image sensor with a memory depth of 10 bits is used in the camera. Thus, the camera is capable of recording high-speed images with a resolution of 1280 x 1024 in black and white. The PCE-HSC 1660 can be mounted on a tripod thread. Mount is C-Thread with F=75 mm / 3 in and f/2.8 lens.

Features:

• USB 3.0 connection
• 1.3 megapixel
• Maximum 2420 FPS
• 10-bit CMOS
• Plug and Play
• Controllable directly via PC
• Trigger port
• Threaded tripod connector

Includes:

• 1 x High-speed camera PCE-HSC 1660
• 1 x 75mm lens f/2.8-2/3 (C-Thread)
• 1 x LED light
• 1 x USB 3.0 cable
• 1 x Remote trigger mechanism
• 1 x Carrying case
• 1 x Software
• 2 x Mini tripod
• 1 x User manual
